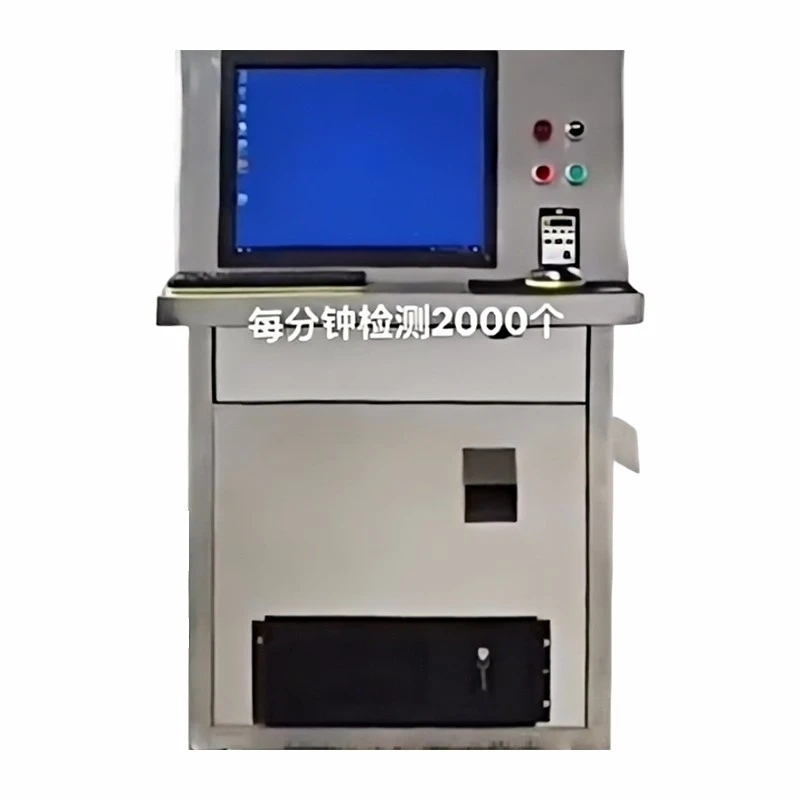

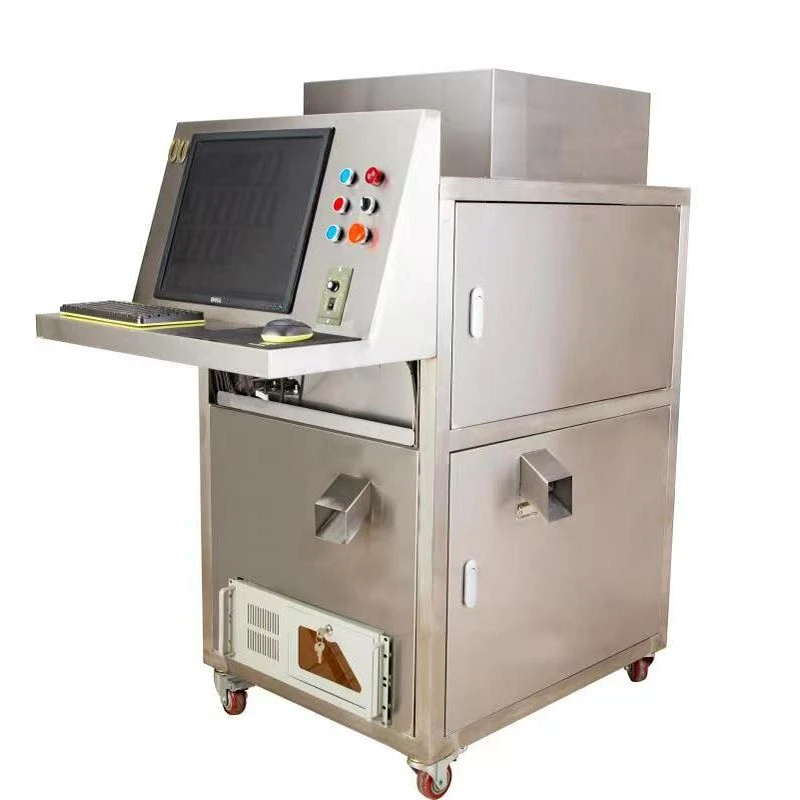

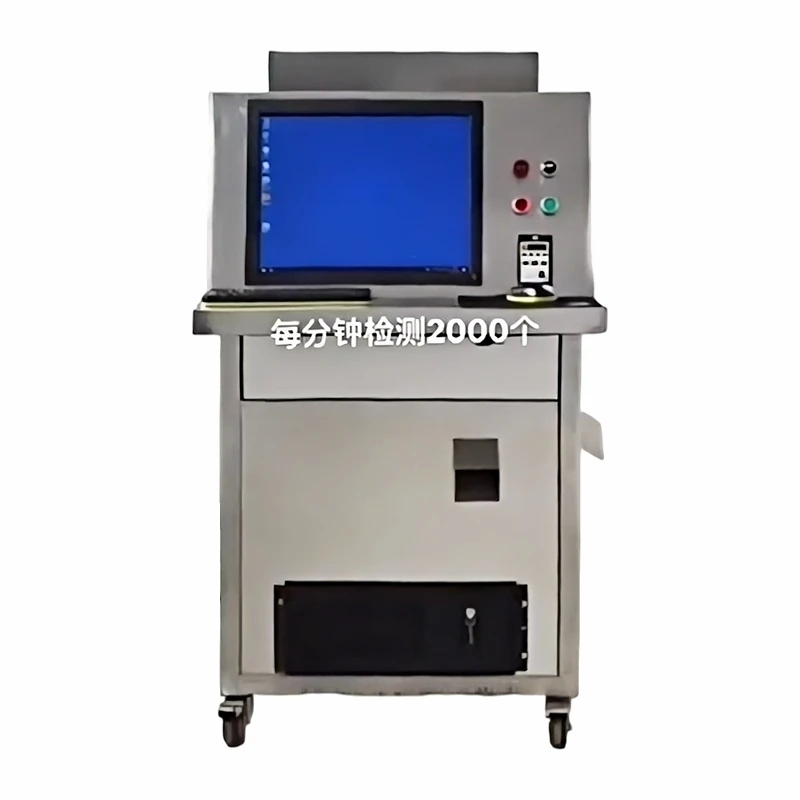

Hard Capsule Inspection machine

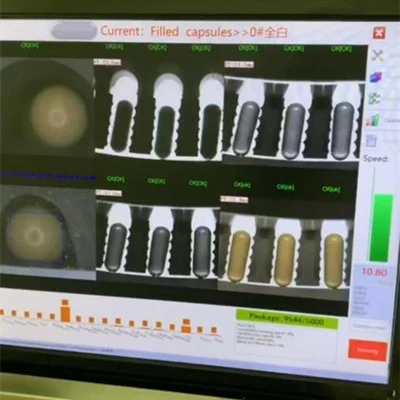

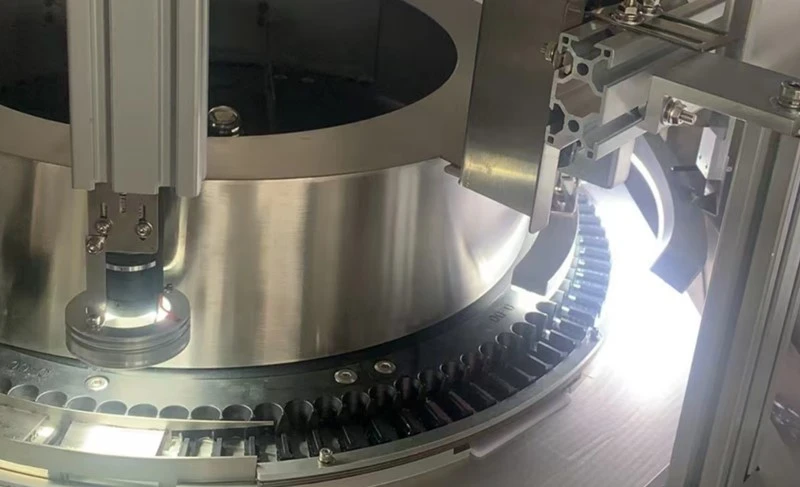

The Vitol's Automatic Hard Capsule Inspection Machine is a high-speed, high-precision system engineered to detect a wide range of appearance defects in all standard hard capsule sizes (#00–#5 and beyond). Featuring a 360-degree rotating roller and vision imaging, it delivers comprehensive, blind-spot-free inspection.
Ensuring pharmaceutical-grade quality at every stage, with a maximum inspection speed of 140,000 capsules per hour.

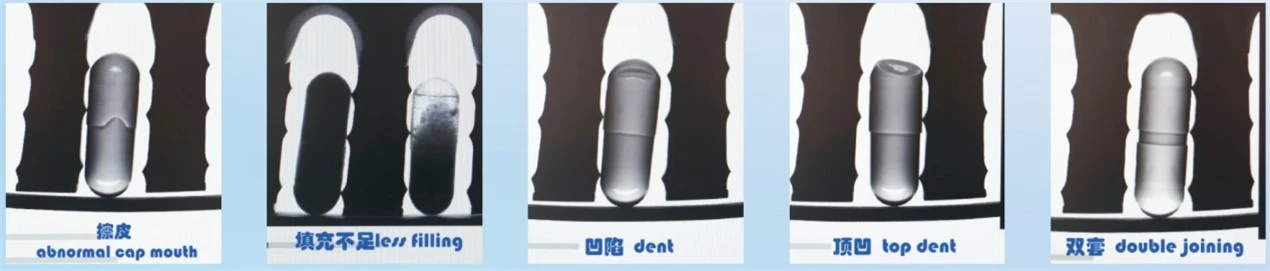

The hard capsule sorting machine can detect defects caused by hard capsule filling, such as concave tops, flat tops, color mixing, double-layering, insufficient filling, cracking, and foreign bodies.

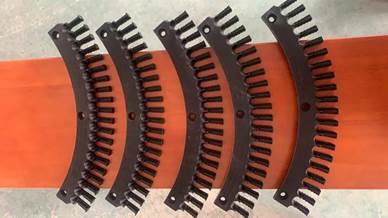

The automatic hard capsule inspection machine mold adopts a modular design, allowing disassembly within 15 minutes and facilitating cleaning. One module can test capsules of three different sizes.
The capsule filling amount is detected using an infrared light source.
Camera Advantage
1. Automatic Hard capsule inspection machine use Da Heng camera. One of the top 10 domestic brands. Widely used in the semiconductor and automotive fields. Camera resolution(75:160M).
2. In addition to the light source, at the bottom of the above has increased the light source, can detect the defect as filling less inside the capsule.

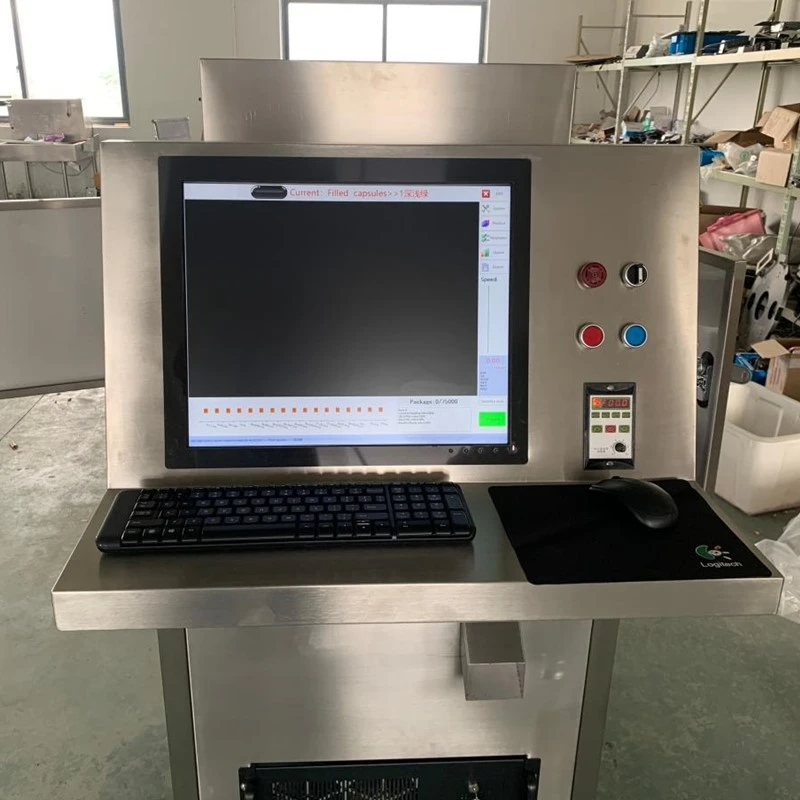

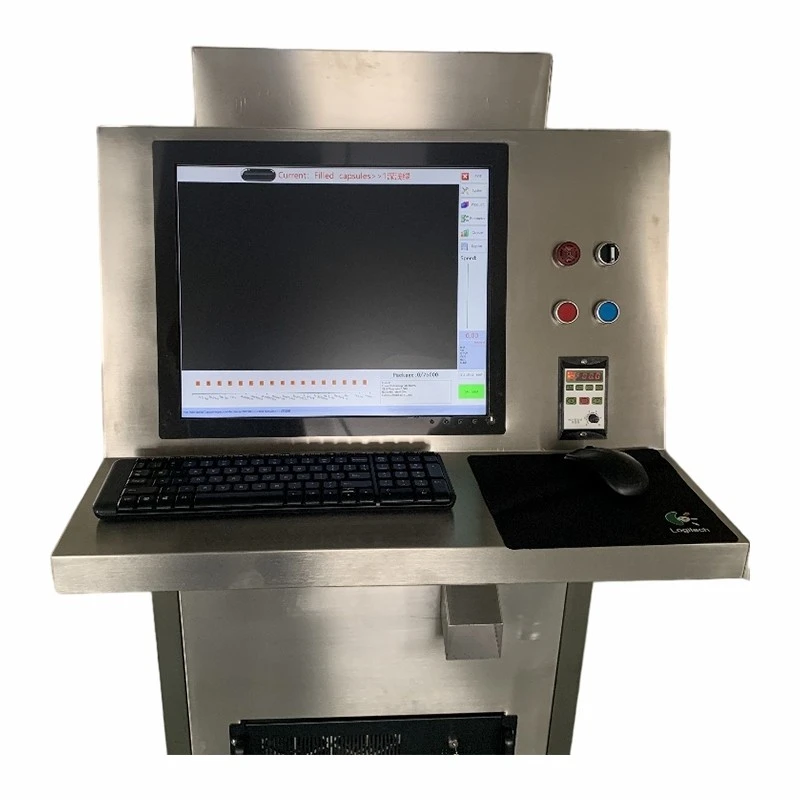

3. Industrial computer operation, quick, accurate identify capsule defects.
System Advantage
1. Vision inspection machine Equipped with remote operation, is thousands of miles apart can also help you to solve the problem of equipment system.
2. Support rapid data export, achieve full process tracebility of the detection, and comprehensively protect the rights and trust of customer.
3. This equipment can detect insufficient filling, saving one weighing detection device.
4. With a 98% inspection pass rate, it steadily ensures product quality while avoiding the risk of manual inspection and reducing labor costs.
|
Items |
Specifications |
|
Inspection capacity |
140,000pcs/H |
|
Mold quantity |
10pcs |
|
Power |
≈0.6KW, 1P |
|
Camera quantity |
6 pcs |
|
Work Pressure |
0.04mpa |
|
Dimension |
1600*850*1300mm |
Q&A
Q: What defects can it detect?

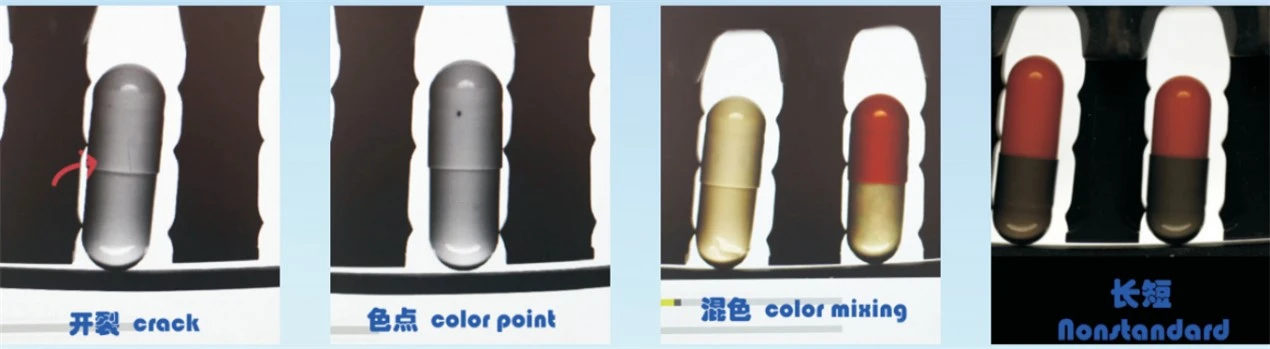

A: Filling less, Different-color capsules, broken capsules, black spots, stains, different-shape capsules, concave top, double cap, fracture, hair, long body, short body, long cap, short cap, long sac, short sac, capsule split, deflated shell, etc.
Q: Does it have 360-degree detection?
A: Yes,360° visual detection.
Q: What size can it detect?
A: #00, #0, #1, #2, #3, #4, #5 and other models with various hard capsules.
Q: What is the pass rate?
A: The pass rate can reach 98%.
Q: The hard gelatin capsule vision insepction machine can count?
A: Yes.If you set 5,000 pcs, the inspection machine will stop.
Q: What industry are suitable for?
A: Pharmaceutical and Nutraceutical.
Q: How long is the warranty?
A: 12 month.
Q: How long is the delivery time?
A: 40 days.
