Gelatin Waste Crushing System | Reduce Raw Material Waste by Over 90%

The Problem: Net Gelatin Waste Is Eating Into Your Margins

Every softgel encapsulation line generates net gelatin scrap - the web-shaped leftover material between formed capsules. For most producers, this accounts for 8–15% of total gelatin consumption, and much of it ends up as waste.

Manual recovery methods are labor-intensive, inconsistent, and rarely recover more than 60–70% of the material - while risking contamination and producing gelatin of variable quality that cannot be reliably reintroduced into production batches.

The result: higher raw material costs, more waste disposal volume, and a sustainability gap that matters increasingly to regulators, customers, and stakeholders.

The Solution: Integrated Continuous Gelatin Recovery

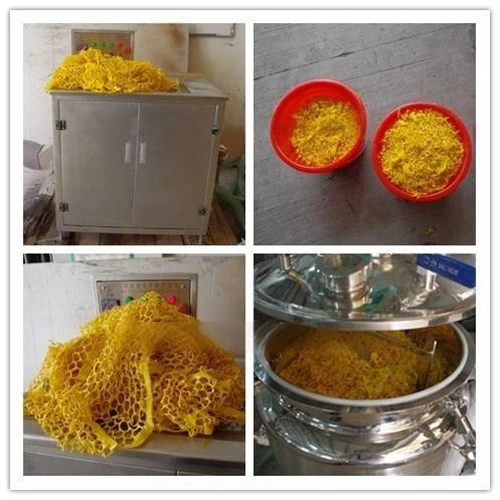

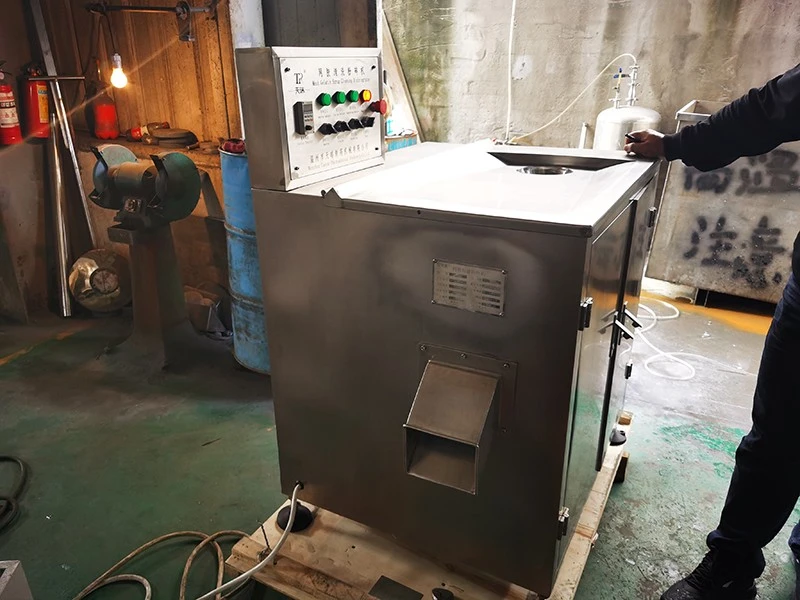

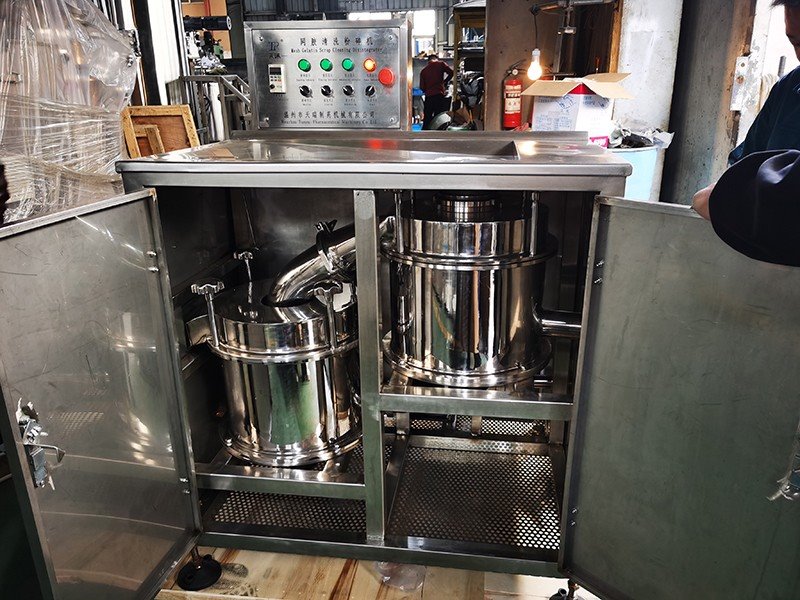

Our Softgel waste crusher automates the entire reclamation process in a single enclosed machine. Waste net gelatin goes in at the top - clean, dewatered, ready-to-reuse gelatin granules come out the other side. At over 90% recovery efficiency, it transforms what was once production waste back into a usable raw material.

Designed for pharmaceutical softgel manufacturing environments, the Softgel waste gel crusher meets GMP hygiene standards, operates continuously at 150 kg/hour, and requires only one operator for loading and discharge.

How It Works - Four Stages, One Machine

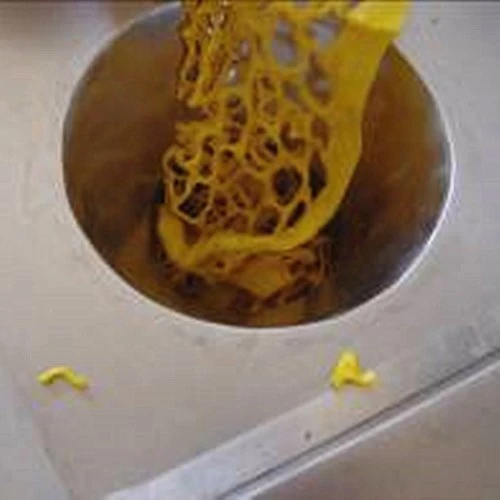

1. Cutting

Patented cutting-grinding mechanism shears web gelatin into uniform granules. Variable speed control adjusts output particle size to match your reprocessing requirements.

2. Washing

Multi-angle spray nozzles remove surface oil, release agents, and capsule debris. Thorough cleaning ensures recovered gelatin meets purity standards for reintroduction.

3. Dewatering

Centrifugal basket spins at 960 RPM to remove surface moisture. Output moisture is consistent and predictable - ready for direct re-melting without additional drying.

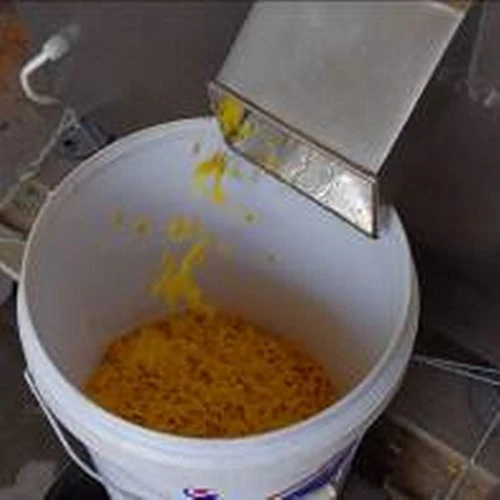

4. Discharge

Single-point automatic discharge delivers clean gelatin granules directly into collection containers. Minimal handling, maximum containment.

What This Means for Your Operation

Raw Material Cost Reduction

Recovering over 90% of your net gelatin directly reduces fresh gelatin procurement. For a typical mid-volume softgel producer, this can translate into thousands of dollars in raw material savings every month - with payback often measured in months rather than years.

Consistent Recovered Quality

Unlike manual recovery which produces variable results, our Softgel waste crusher delivers consistent output quality batch after batch. Uniform particle size, controlled moisture content, and thorough washing mean recovered gelatin can be reintroduced at established ratios - without compromising capsule quality or gelatin bloom strength.

Labor & Operational Efficiency

One operator can manage both feed and discharge - replacing the labor-intensive manual workflow of washing, straining, and tray drying. Continuous 150 kg/hour throughput keeps pace with even high-production encapsulation lines.

Sustainability

Lower waste disposal volumes and reduced water consumption versus manual methods further strengthen your environmental profile - increasingly important for pharmaceutical supply chain qualification.

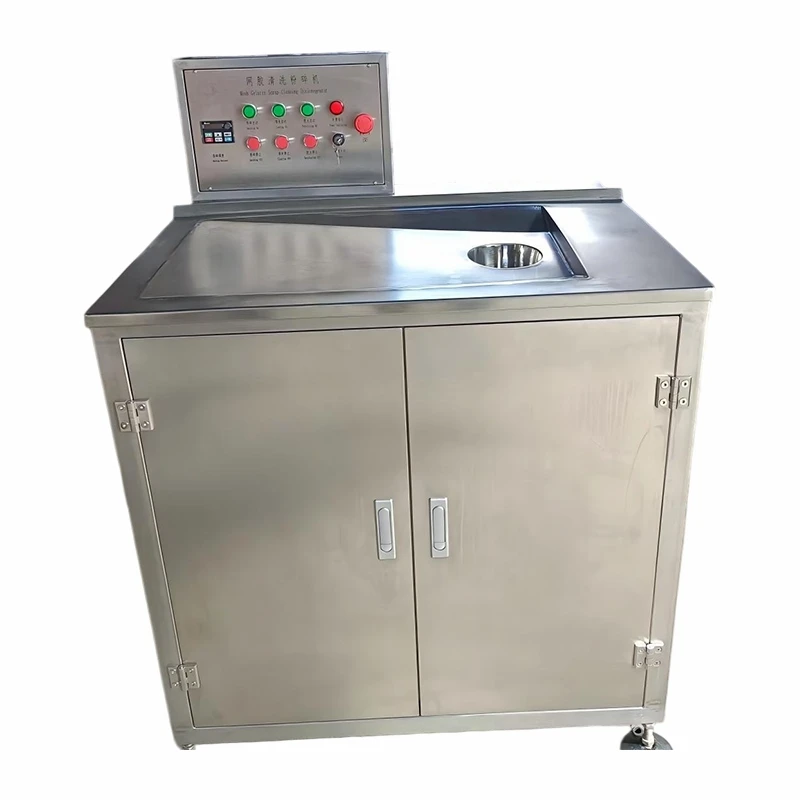

Key Machine Features

Feature	What It Delivers
Integrated 4-in-1 processing	Cut, wash, dewater, and discharge in one machine - no material transfer between stations, no additional equipment needed

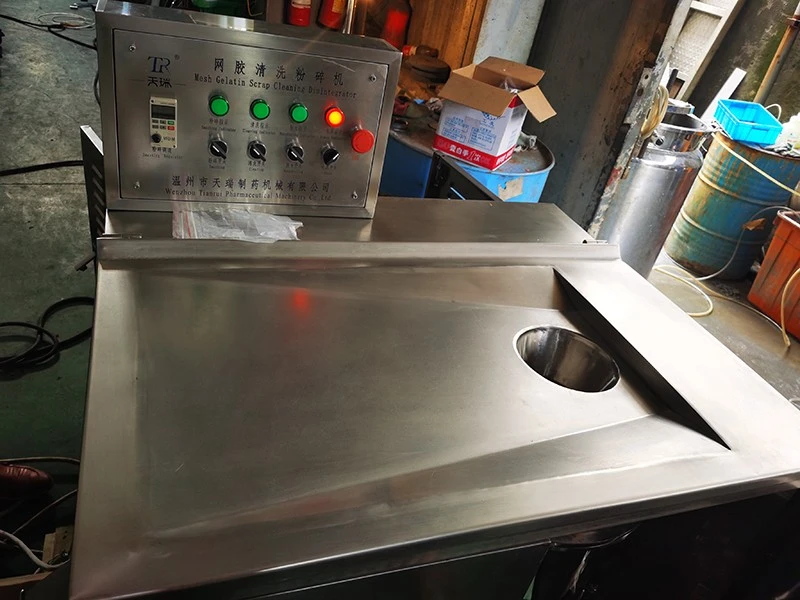

Variable speed grinding (VFD)	Adjustable particle size output matched to your re-melting process and formulation requirements

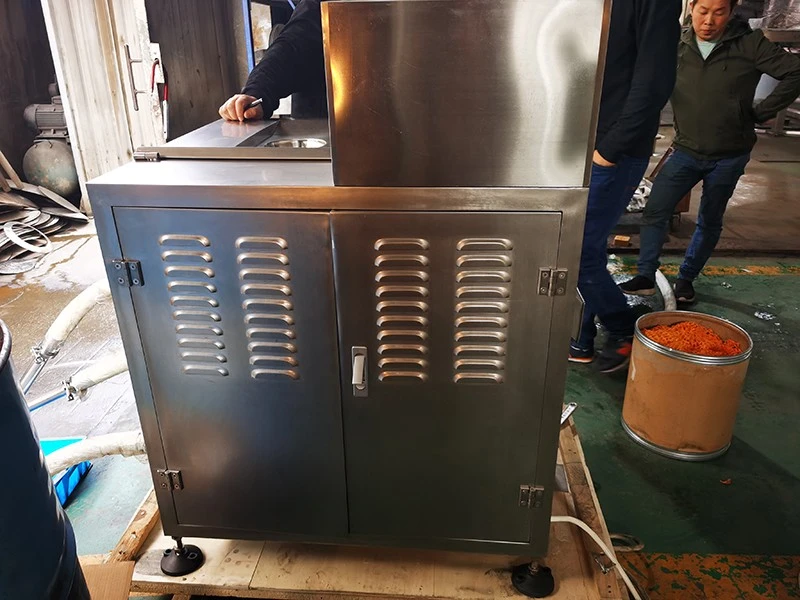

Fully enclosed chamber	Internal-external isolation prevents cross-contamination; contains moisture and dust for GMP-compliant operation
All stainless steel construction	SS304 throughout - corrosion-resistant, easy to clean, suitable for pharmaceutical production environments
Single discharge point	Clean, contained material output; simplifies collection and minimizes operator contact with product
Cold-cutting blade design	Shears without generating frictional heat - preserves gelatin bloom strength and molecular integrity

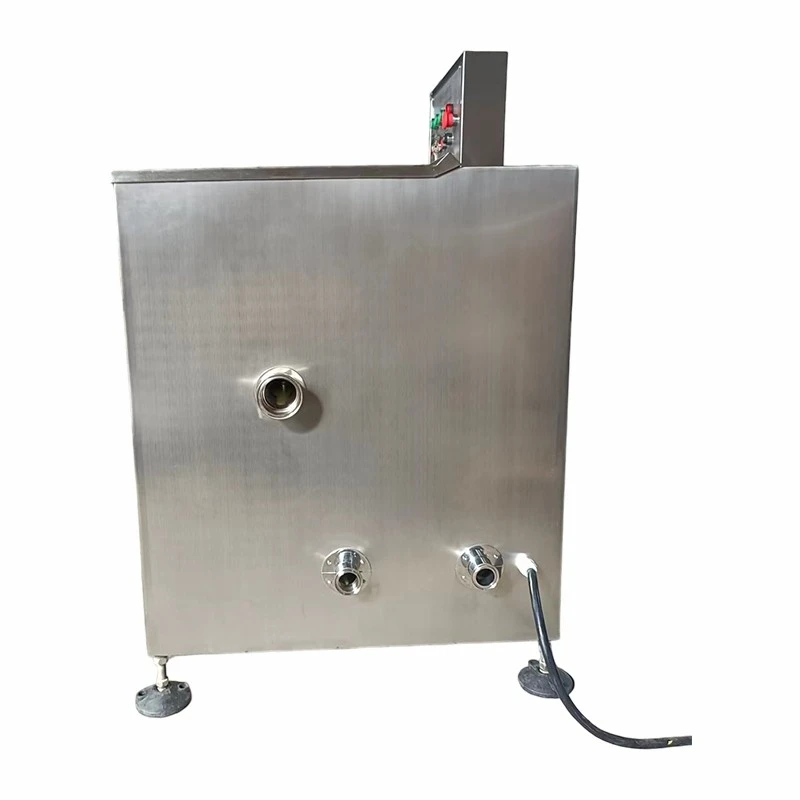

Separate waste water outlet	Dedicated drain for wash water - no mixing with product stream; simplifies plumbing integration

Technical Specifications

Specification	Model GNC-9
Processing Capacity	150 kg/hour (input net gelatin)
Recovery Rate	> 90%
Grinding Motor	1.1 kW, 0 – 960 RPM (VFD variable)
Dewatering Motor	1.1 kW, 960 RPM (fixed speed)
Water Pump	0.75 kW
Water Consumption	3T/ hour
Materials of Construction	SS304 stainless steel (product contact + exterior cabinet)
Footprint (L × W × H)	900 × 800 × 1,240 mm
Net Weight	268 kg
Electrical	380V / 3-phase / 50Hz (configurable)

Where It Fits In Your Production Line

The Softgel waste crusher is designed to integrate alongside your existing softgel encapsulation operation:

Batch mode: Collect net gelatin from encapsulation runs, then process through the crush system as a separate batch operation
Semi-continuous: Feed accumulated net gelatin directly from the encapsulation room collection area
Multi-line facilities: One unit net gelatin washer grinder can serve multiple encapsulation lines with centralized net gelatin collection
Compatible with all major softgel machine brands - works with net gelatin scrap from any encapsulation press

Available Upgrades

SS316L Product Contact Upgrade

For facilities requiring higher-grade corrosion resistance and material certification

CIP Cleaning System

Integrated spray balls for automated internal wash-down between product changeovers

Vibratory Screen Classifier

Consistent output particle sizing for more predictable re-melting performance

Mobile Cart Configuration

Heavy-duty casters with brakes for flexible positioning between production areas

Compliance & Support

GMP-aligned hygienic design with fully drainable, cleanable product contact surfaces
Stainless steel material certificates available for all product-contact components
CE marking available for European installations
Full documentation package: operation manual, maintenance manual, electrical schematics, spare parts list
IQ/OQ documentation available on request for pharmaceutical validation requirements
12-month comprehensive warranty

Want to estimate your potential savings? Share your monthly gelatin consumption and net waste percentage, and we'll calculate your projected raw material cost reduction with our recovery system.
