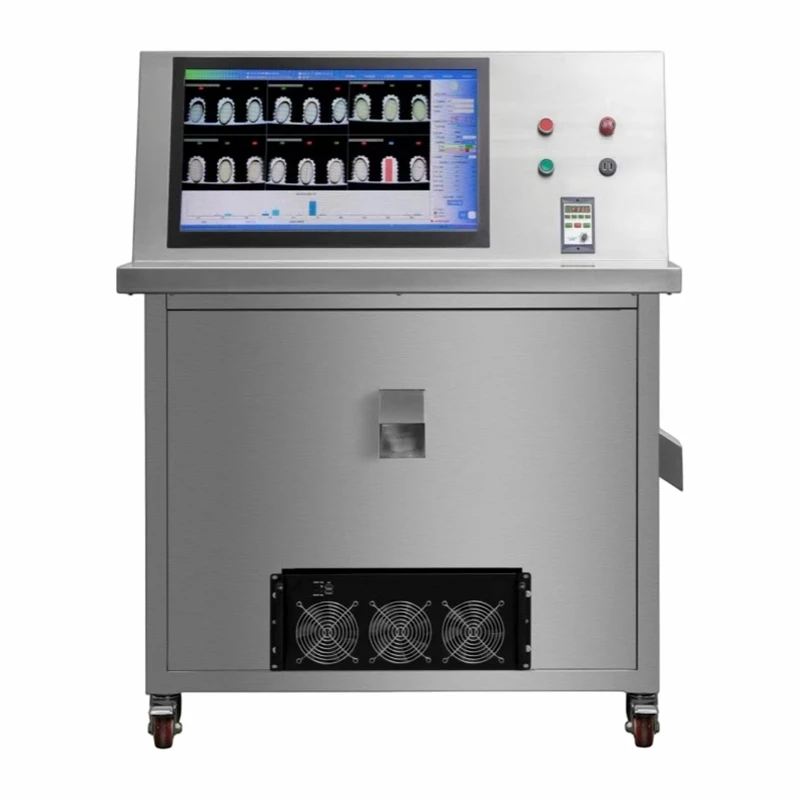

Automatic Capsule Detection Machine

Overview

The Vitol's automatic softgel inspection machine, specifically developed for the pharmaceutical and health supplement industries, is capable of inspecting softgel and hard capsules. It can examine soft capsules in various shapes including round, oval, and oblong shape.

Softgel Inspection Machine

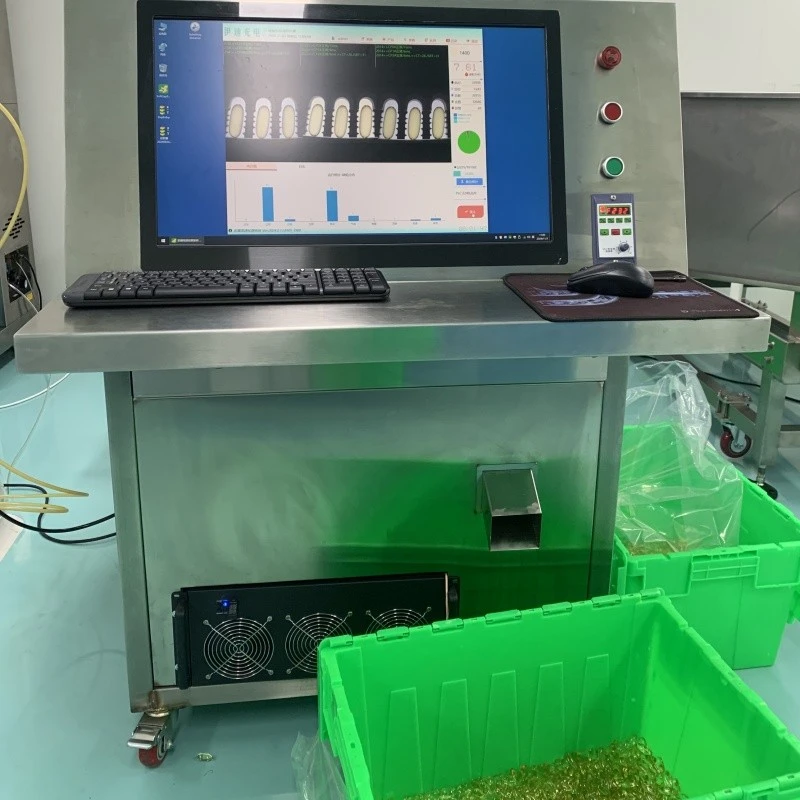

The automatic softgel inspection machine system is a high-speed, high-precision solution that employs 360-degree rotation and camera-assisted imaging technology to achieve comprehensive visual inspection without blind spots. It is specifically designed to meet the stringent requirements of the modern pharmaceutical and nutritional supplement industries.

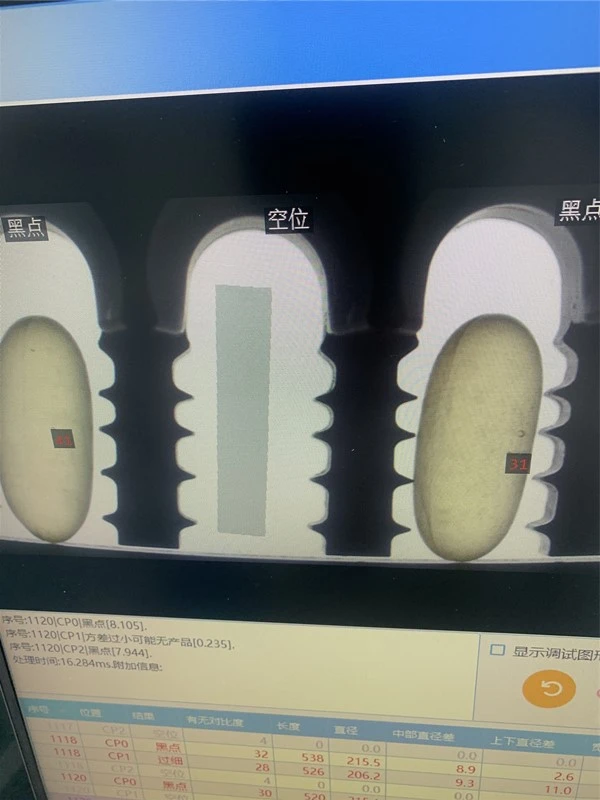

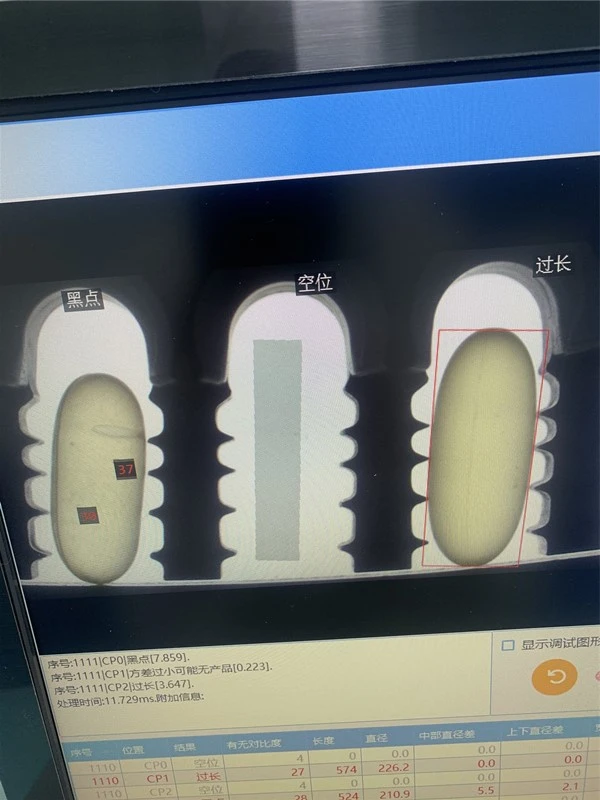

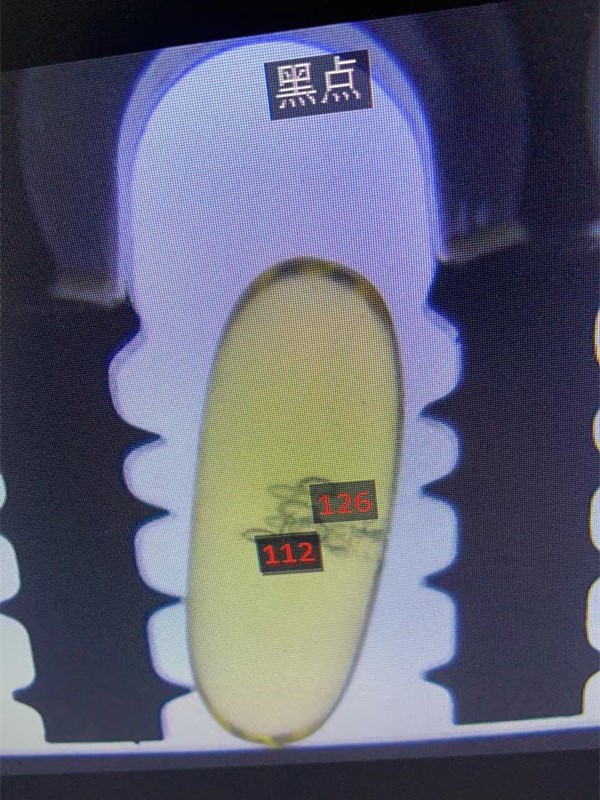

The vision capsule detection machine integrates visual technology and intelligent algorithms to ensure high-precision detection and removal of defective capsules. The automatic softgel inspection machine can accurately identify black dot contaminants as small as 0.5 mm,The capsule testing machine can detect dimensional changes as small as 0.1 mm and accurately identify leak defects in softgel,ensuring flawless product quality.Its compact mechanical structure and reliable control system occupy minimal space while maintaining cost-effectiveness. The system supports seamless integration with various capsule filling machines or operates as a standalone unit.

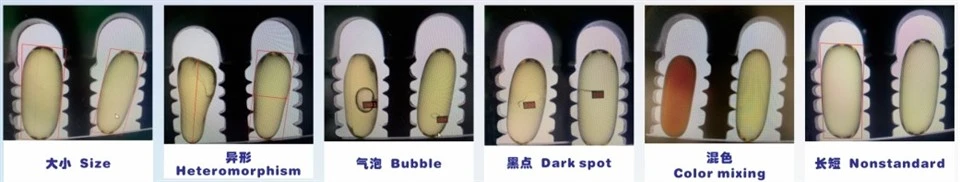

The soft capsule inspection machine can detect defects such as bubbles, leakage, deformation, black spots, and dimensional deviations, achieving a 98% pass rate for leakage detection and a 99.9% pass rate for appearance inspection. It can process 120,000–250,000 capsules per hour, meeting diverse production capacity requirements of customers.

Each capsule can capture 14 images under two distinct light source conditions, thereby providing high-resolution, multi-angle views. This unique capability enables precise detection of transparent, semi-transparent, or colored soft capsules.

Automatically record the test results for each capsule (including reasons for compliance/non-compliance), generate a comprehensive test data report to facilitate quality traceability and compliance review, and meet GMP requirements.

It effectively detects bubbles as small as 0.1 mm, ensuring the purity inside the capsule.

It can precisely detect surface scratches and depressions with micron-level accuracy.

Daheng industrial cameras, which employ professional image acquisition and processing, are among the top ten well-known brands in China.

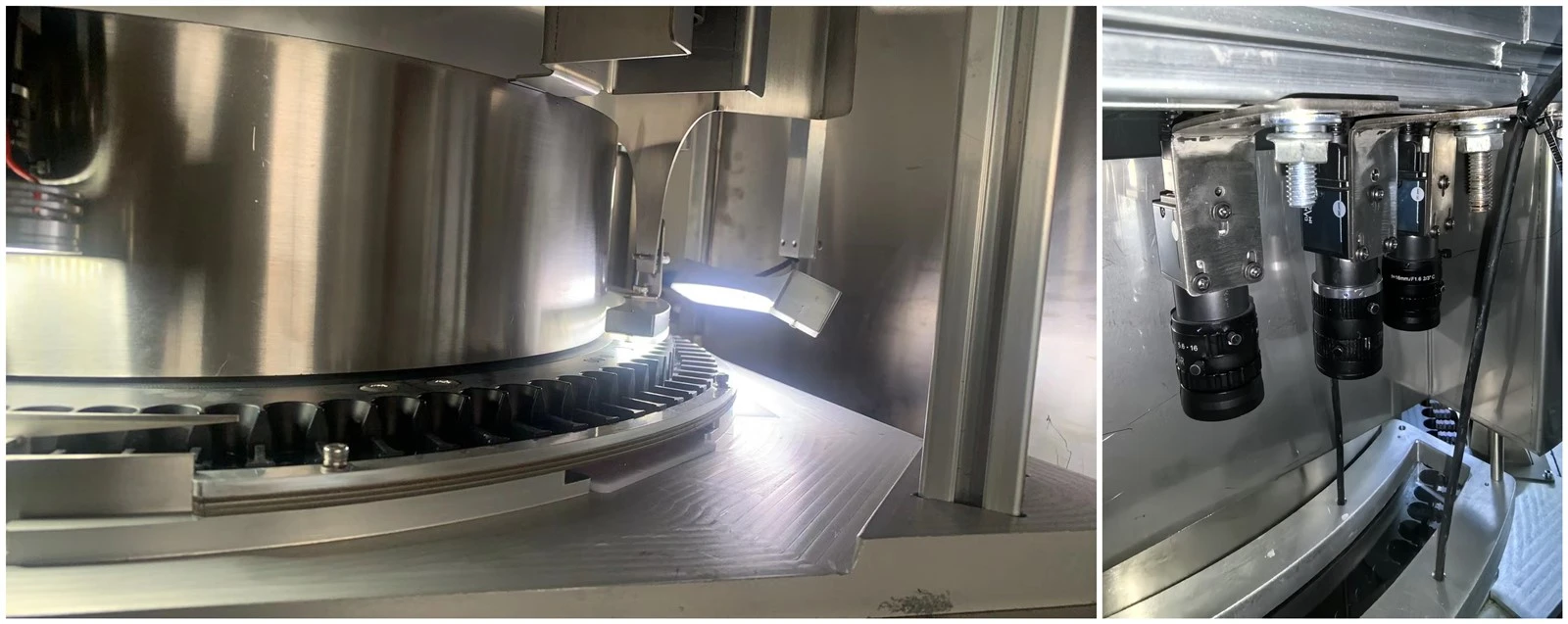

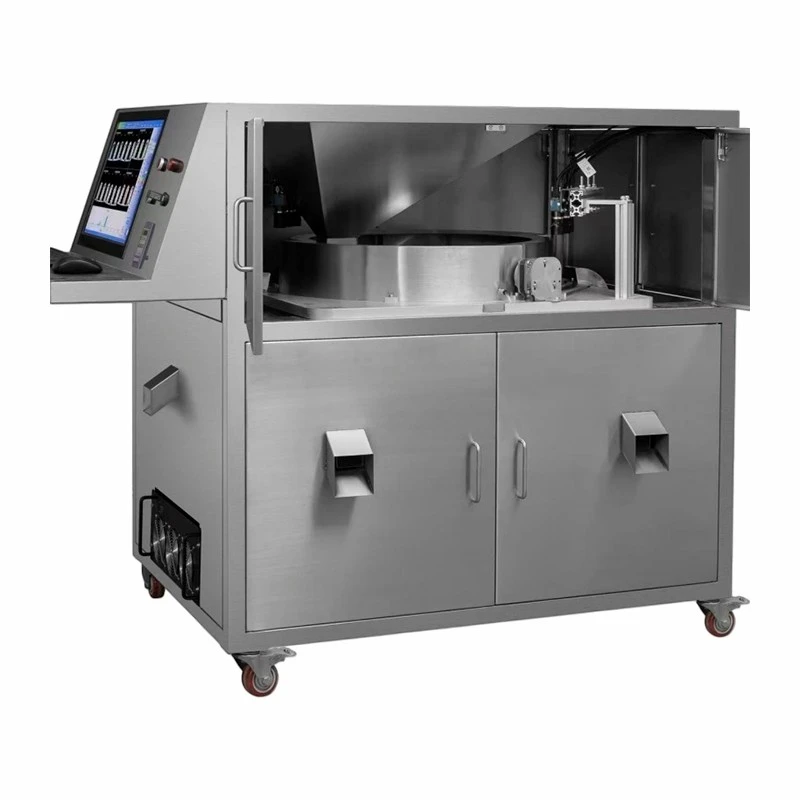

Equipment components include: feed port, vibratory feeder, mold, camera, light source, industrial computer, air source, etc.

Model/Function	VSC01	VSC02
Lane quantity	1	2
Camera quantity	3	6
Work pressure	0.04mpa	0.04mpa
Capacity	120,000-150,000pcs/H	220,000-250,000pcs/H
Count	√	√
Dark spot	√	√
Leak	√	√
Heteromorphism	√	√
Chromatism	√	√
Deep Indentation	√	√
Machine Dimension	14208601300mm	16509601300mm

Workflow: Collect the softgel data and generate the testing formula. After turning on the detect machine, feeding soft gelatin capsules, select the formula, and begin testing.That is easy to operation the inspection machine.

Q&A

Q: What defects can it detect?

A: Heteromorphism, dark spot, bubble, chromatism, deep indentation, Leak(not include leakage caused by environment, temperature, raw materials, etc. after packaging).

Q: Is it detect leak?

A: Yes.But not include leakage caused by environment, temperature, raw materials, etc. after packaging.

Q: Does it have 360-degree detection?

A: Yes, 360° visual detection.

Q: What color can it detect?

A: Any colorts.

Q: What shaped can it detect?

A: Round, Oval, Oblong softgel. But, One inspection equipment can detect Round and Oval, because them length and width ratio is similar.

Q: What size can it detect?

A: Any size, we can change the mold.

Q: What is the output of the softgel detetion machine?

A: 1 lane output about120, 000-150, 000pcs/H. 2 lanes output about 220, 000-250, 000pcs/H.
