Intelligent Dehumidification tumble

Building upon the dual-layer rotating cage design, this system integrates rotary dehumidification with closed-loop intelligent temperature and humidity control. It is specifically designed for the deep drying of high-demand soft capsules (e.g., enteric-coated capsules or those containing moisture-sensitive contents). The system achieves stable drying under low-temperature and low-humidity conditions, reducing processing cycles and improving product yield.

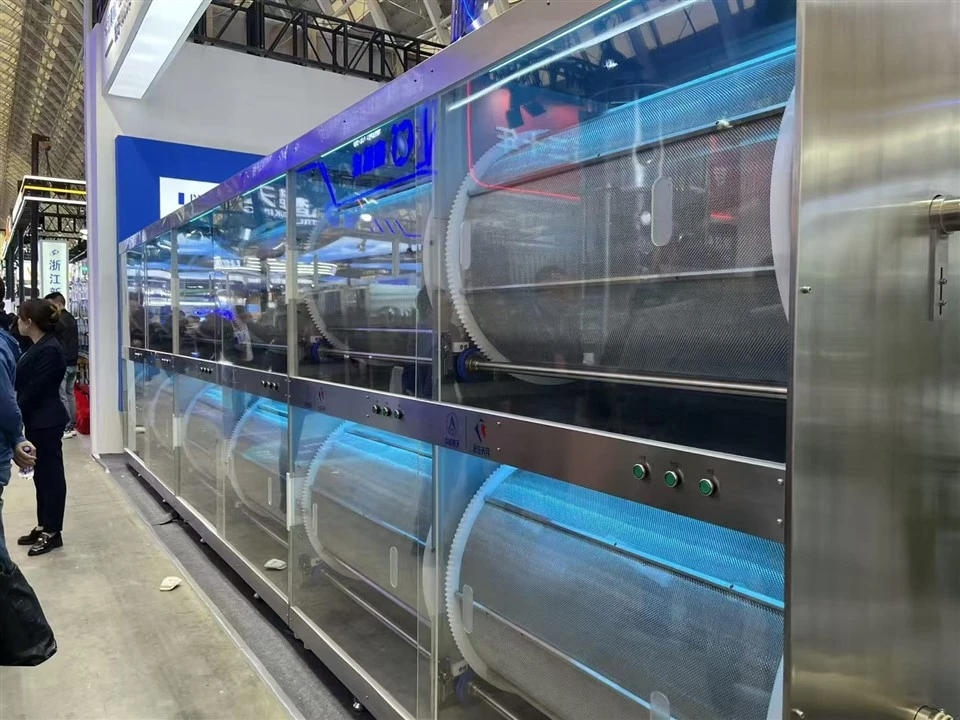

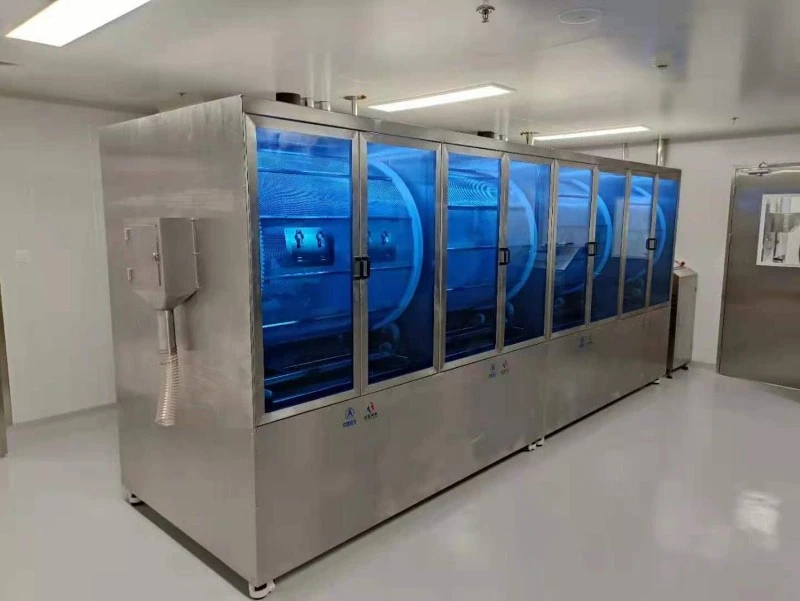

The RTD580x900CS intelligent dehumidification tumble dryer, as the preferred drying equipment for round particles such as soft capsules, plays a key role in intelligent automated produc- tion lines. Each drying unit integrates a touch screen operation interface, PLC control system, temperature and humidity detection, and pressure sensing technology to ensure precise control of the dehumidifier, electric heating, cold water supply, and transmission system.

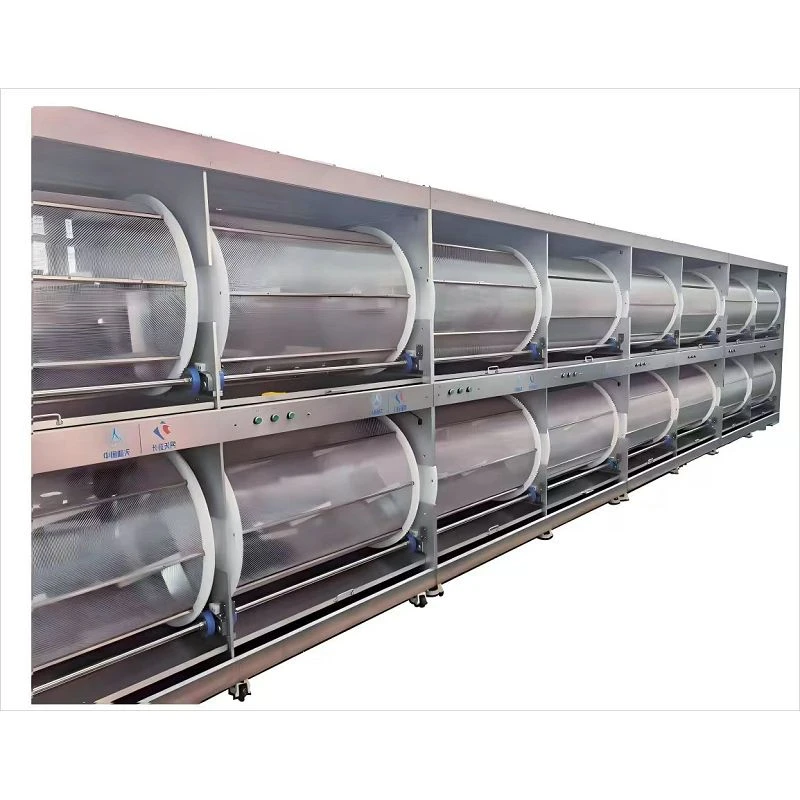

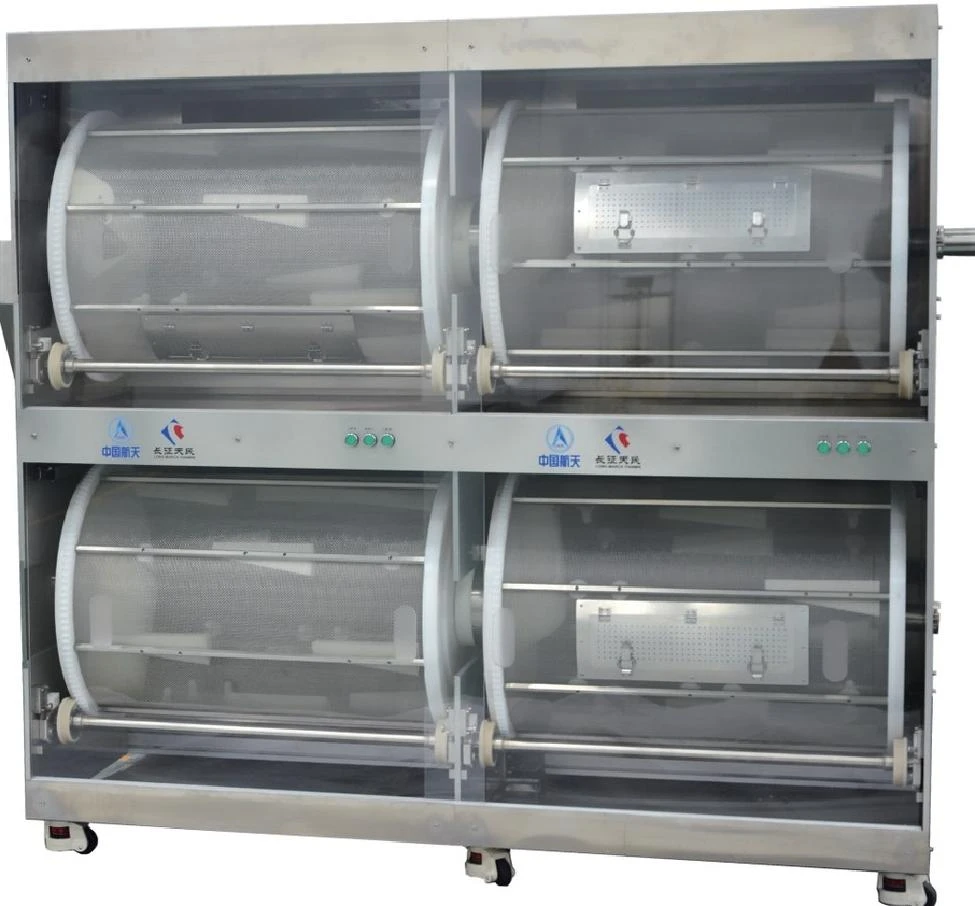

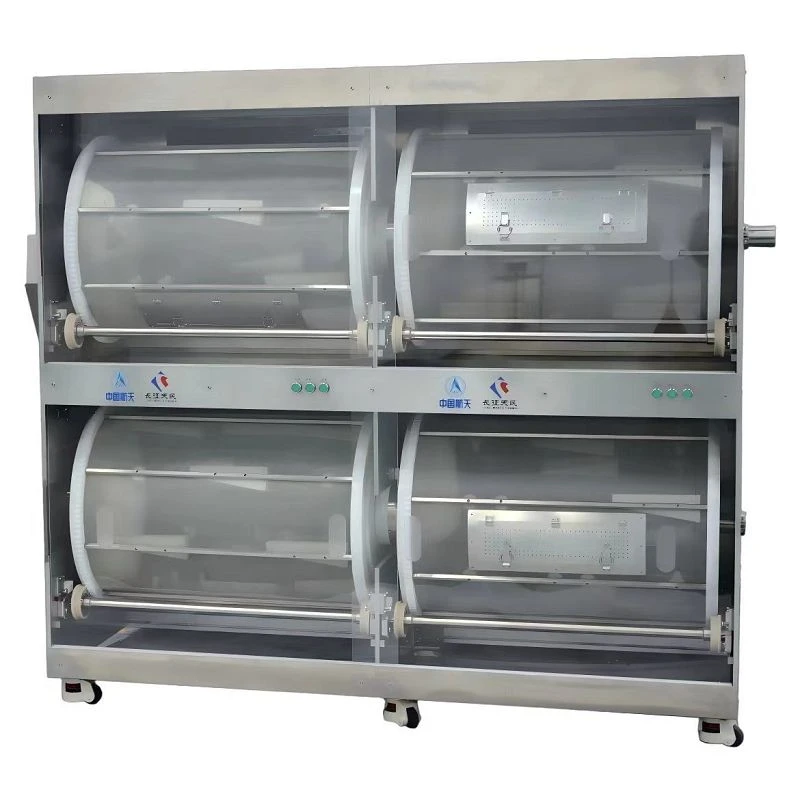

Based on data analysis of soft capsule drying process, the system can automatically adjust the temperature and humidity settings of each cage to achieve efficient and stable drying effect. The device is designed as a double-layer structure, with each layer containing two cages, and each unit can operate independently. In addition,the unit is equipped with dual dehumidification units, which ensure the accuracy of temperature and humidity control through their independent sensor networks.

Support manual control of the forward and reverse rotation of the cage. The cage is also equipped with LED lighting and ultraviolet disinfection lamps to ensure a clean operating environment. After multiple units are combined into a production line, IT cluster man-agement is achieved through a central touch screen, which monitors the energy consump- tion and cage temperature and humidity of each unit in real time, realizing the intelligence and automation of the production line.

Technical Feature

Rotary wheel deep dehumidification

A closed-loop low-temperature drying system maintains indoor humidity controllable at ≤8% RH, significantly reducing drying time.

End-to-end intelligent monitoring

Each transfer cage is equipped with temperature and humidity sensors, while the four cages form a single circuit for centralized temperature control and dehumidification, ensuring stable and traceable data.

Double-layer isolation with top-mounted drive system

Ensures no interference between upper and lower layers, prevents oil leakage, maintains clean zone compliance, and meets GMP requirements.

Multi-layer protection

A multi-dimensional automatic alarm system with touch-screen fault recording.

Energy-efficient and low-consumption

With dehumidification regeneration and optimized air circulation, it consumes less energy than open-type drying systems.

Space-grade manufacturing

Featuring precision, reliability, and service life comparable to military-grade standards, with stable continuous production that significantly reduces downtime for maintenance.
