Softgel Capsule Polishing Machine | Capsule Surface Finishing for Premium Appearance

Overview

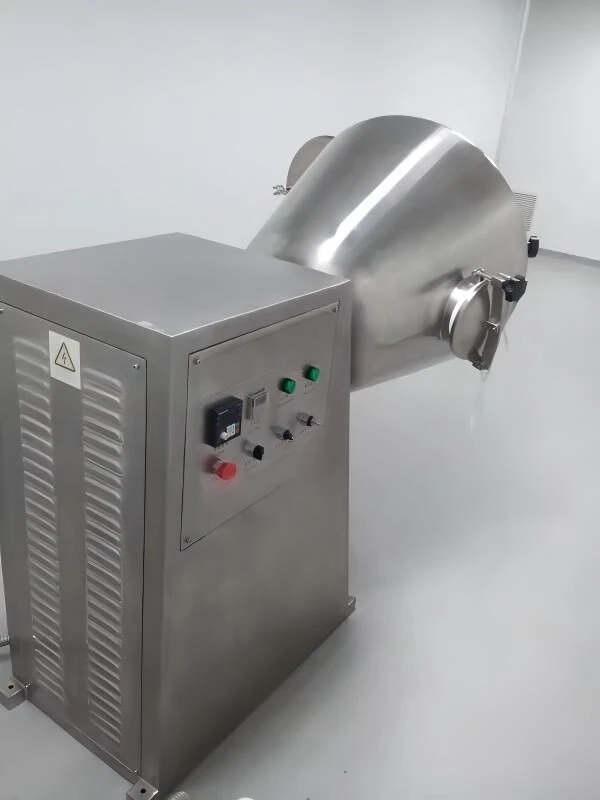

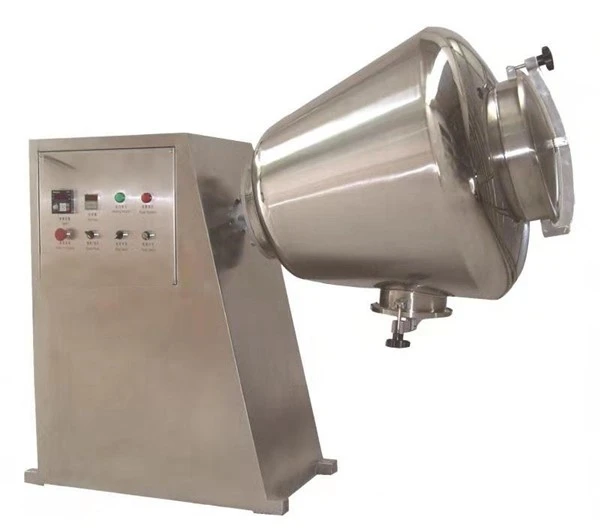

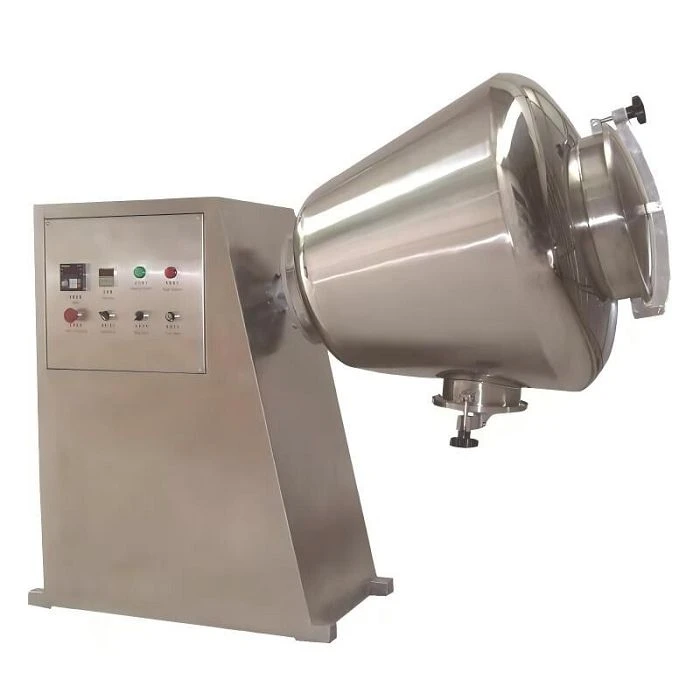

The Softgel Capsule Polishing Machine is a post-drying finishing unit that gently tumbles capsules to remove surface dust, fine particles, and residual drying marks. Positioned after the drying tunnel and before inspection or packaging, it gives finished softgels a clean, uniform, professional surface appearance.

Constructed from SS316L stainless steel for all product-contact surfaces, the Softgel Capsule Polishing Machine is designed for pharmaceutical production environments. Gentle tumble action ensures surface improvement without damaging capsule shells or affecting seal integrity.

Why Polish Softgel Capsules?

Polishing is the final surface finishing step that directly impacts perceived product quality:

Uniform Glossy Appearance

Removes dull surface residue and drying marks, giving capsules a smooth, professional finish that supports premium product positioning.

Consistent Surface Quality

Eliminates batch-to-batch variation in surface appearance caused by drying conditions or minor formulation differences.

Reduced Dust in Packaging

Removes loose surface particles before bottling - reducing dust buildup in packaging lines and improving finished product cleanliness.

How It Works

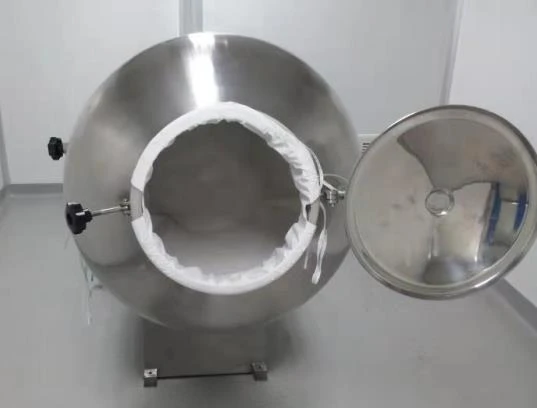

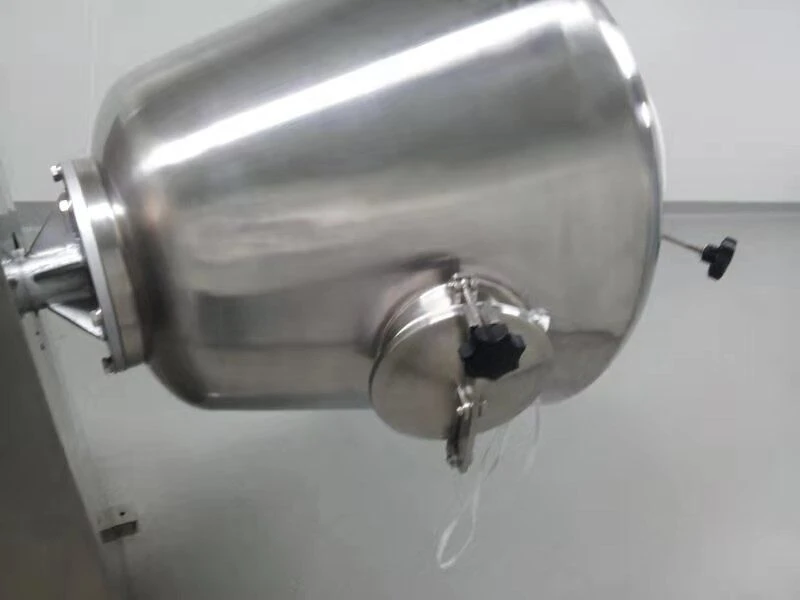

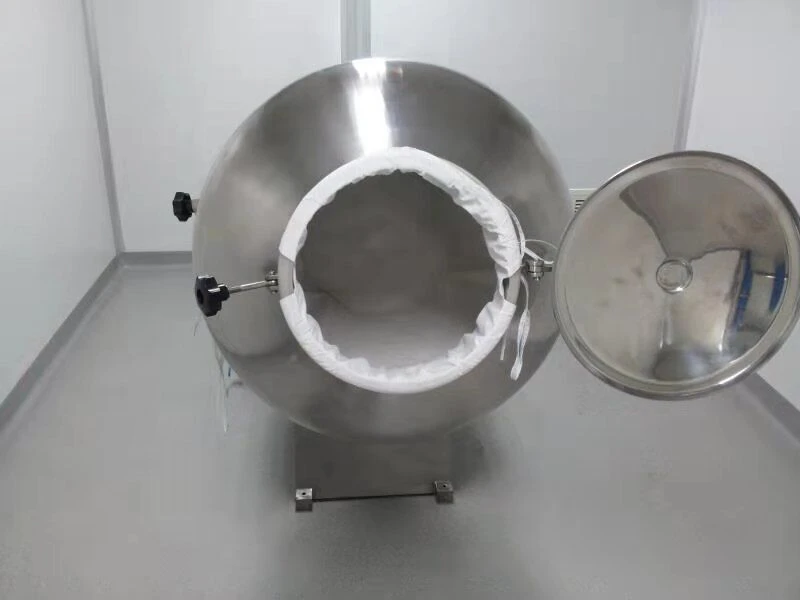

Capsules enter the rotating polishing cylinder, where gentle tumbling action and soft contact with the internal surface removes fine surface residue. The slow rotational speed ensures thorough yet gentle processing - capsules exit uniformly polished without shell abrasion or damage.

Key Features

SS316L stainless steel product-contact surfaces - pharmaceutical grade
Gentle tumble action - no shell damage or seal stress
Adjustable rotation speed to match capsule size and formulation
Continuous in-line operation - integrates between drying and inspection
Easy access for cleaning and product changeover
Compact footprint fits standard production room layouts

Technical Specifications

Parameter	Specification
Product Contact Material	SS316L stainless steel
Processing Type	Continuous tumble polishing
Speed Control	Adjustable rotational speed
Operation	In-line continuous processing
Frame & Exterior	SS304 stainless steel
Power	1.5 kW/380 V/50 Hz × 1 unit
Loading weight 30Kg	30KG
Dimension	1750×800×1460 mm (length × width × height)
Cleaning	Tool-free access for disassembly and cleaning

Position in the Production Line

Encapsulation → Washing → Drying Tunnel → Polishing → Inspection / Sorting → Packaging

The Softgel Capsule Polishing Machine is typically the final mechanical step before visual inspection and packaging - ensuring capsules enter the quality control stage with their best possible surface finish.
