Gelatin Service Tank | Insulated Gelatin Holding Vessel

Gelatin & Medicine Service Tank Overview

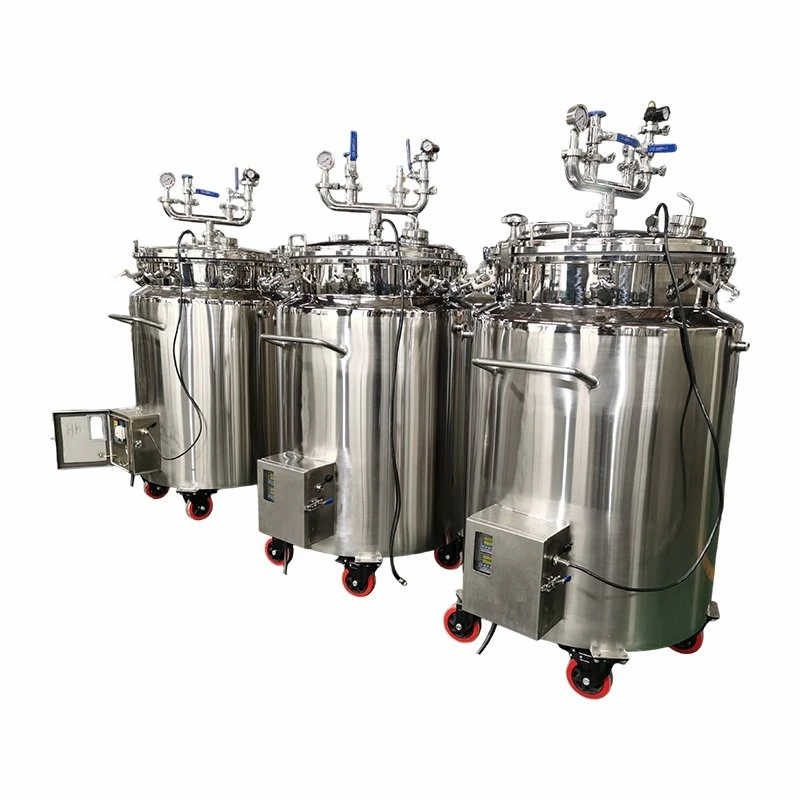

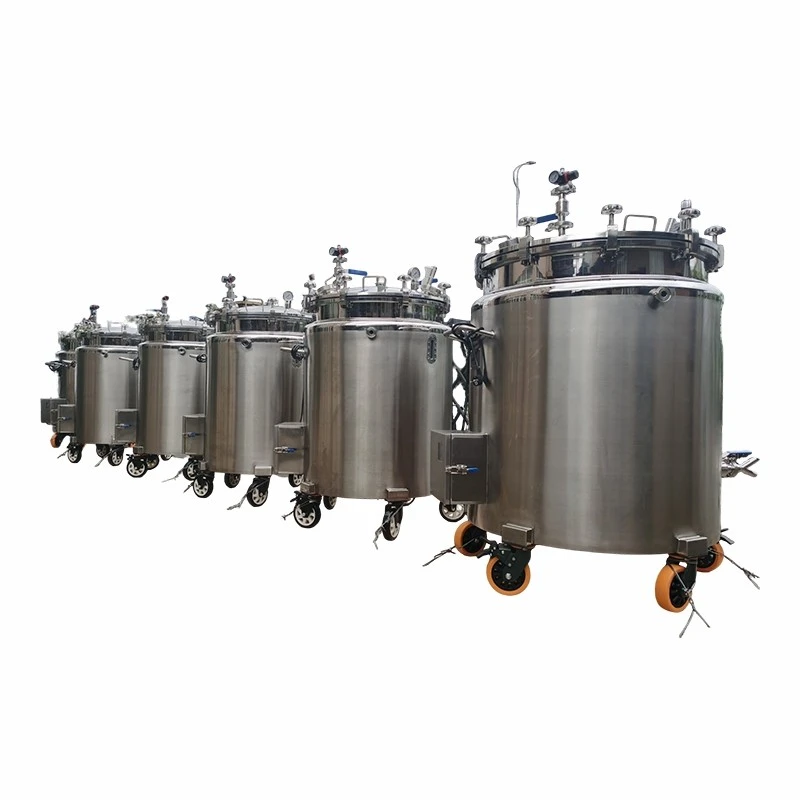

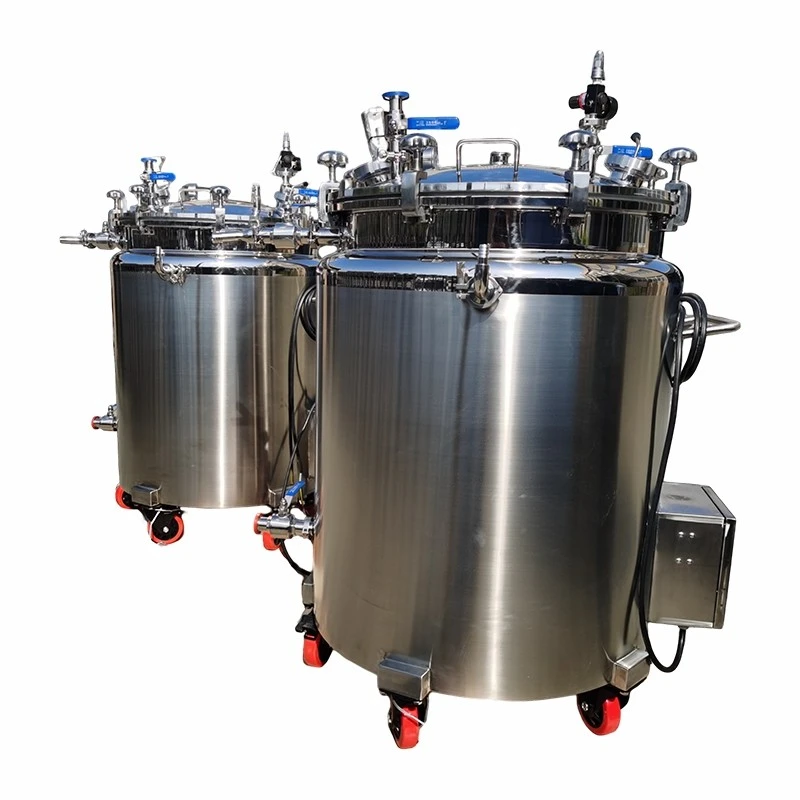

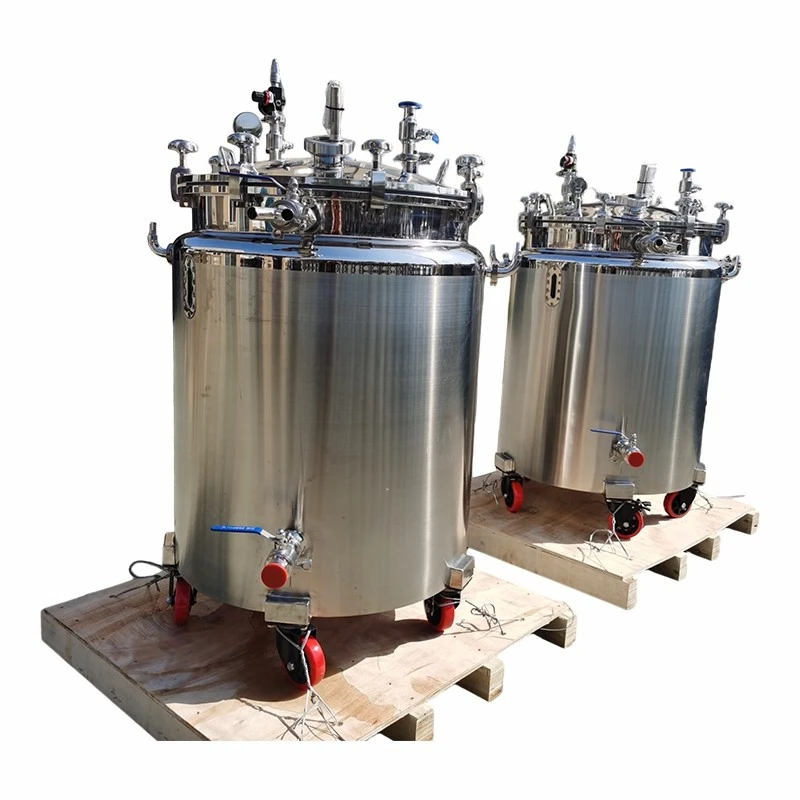

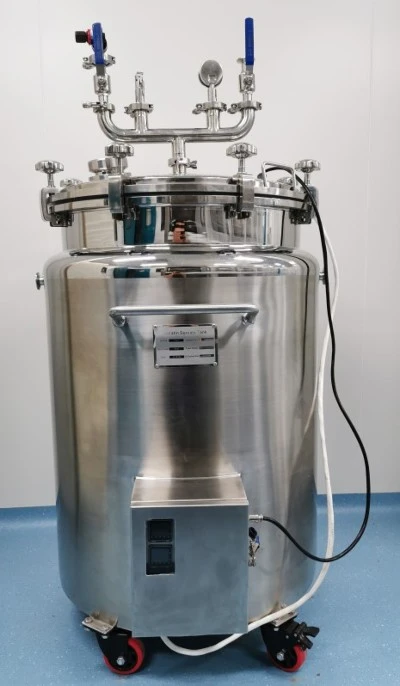

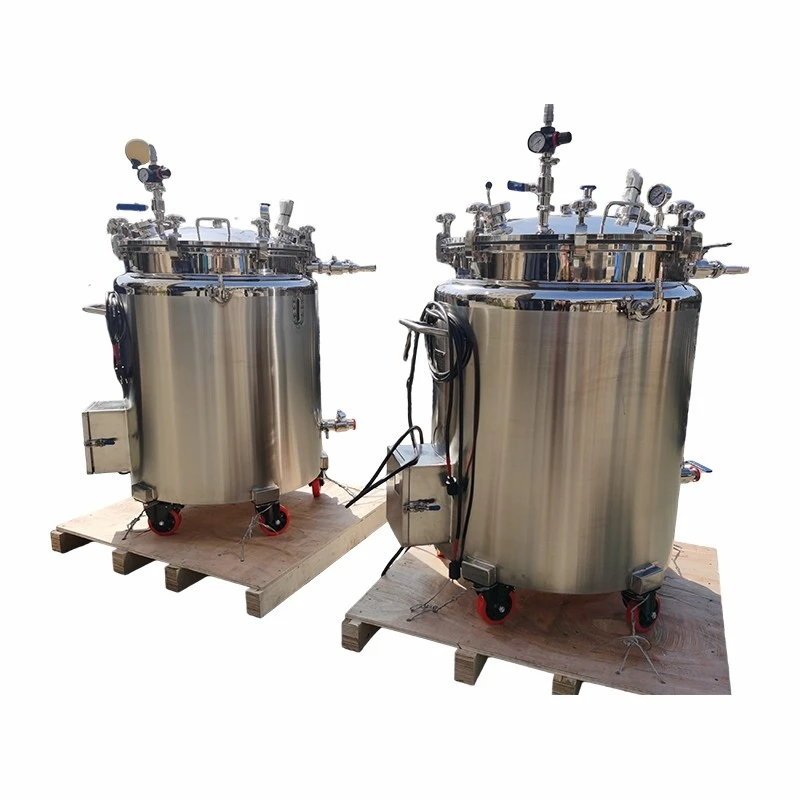

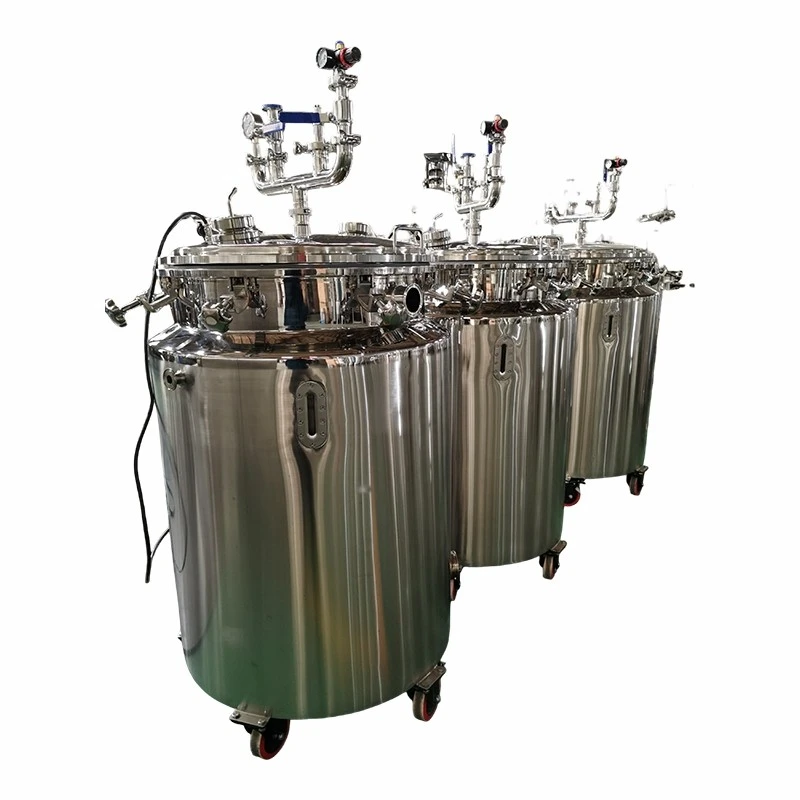

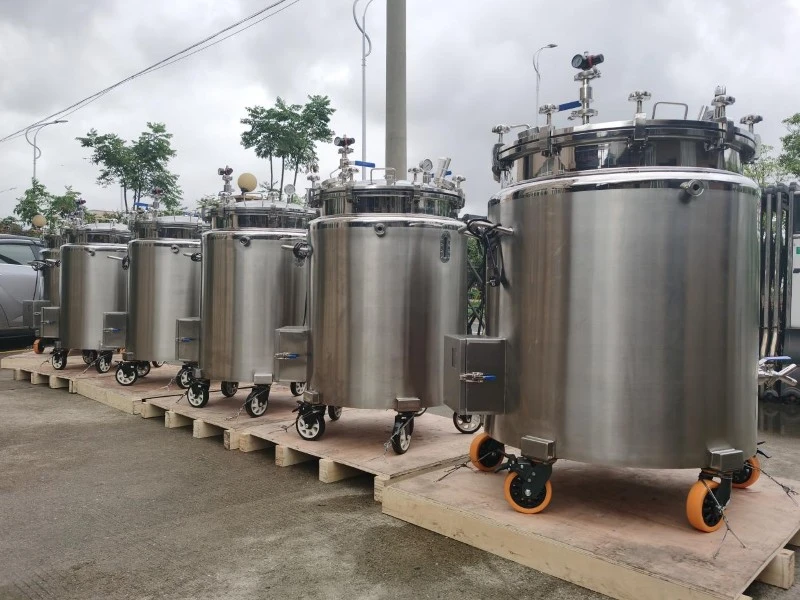

The Gelatin Service Tank is a insulated holding vessel designed to receive melted gelatin and medicine liquid from the preparation system and maintain it at constant temperature before delivery to the encapsulation machine. Positioned between the gelatin melting area and the encapsulation line, it ensures a continuous supply of conditioned gelatin ready for capsule production.

Constructed entirely from SS316L stainless steel, the tank is built to pharmaceutical hygiene standards. Its mobile design allows flexible positioning alongside softgel encapsulation presses, supporting multi-machine production layouts.

Key Features

• Insulated Jacket: Maintains consistent gelatin temperature between preparation and encapsulation, preventing viscosity drift and gel setting

• SS316L Pharmaceutical Grade: All product-contact surfaces in 316L stainless steel - corrosion-resistant and GMP-appropriate

• Mobile Design: Wheeled configuration for flexible positioning between production zones or multiple encapsulation lines

• Heated Lid Option: Top cover with integrated heating reduces surface skin formation and minimizes gelatin waste on the vessel wall

Role in the Softgel Production Line

The gelatin and medicine service tank sits in the gelatin preparation workflow as the final holding step before encapsulation:

Gelatin Melting Tank → Vacuum Deaeration → Gelatin Service Tank → Softgel Encapsulation Machine

It acts as a buffer reservoir, decoupling batch preparation from continuous encapsulation - allowing the melting system to process the next batch while the encapsulation line draws from the service tank.

Technical Specifications

Parameter	gelatin and medicine service tank
Nominal Capacity	50L/100L/200L/300L/500L/600L/1000L
Product Contact Material	SS316L stainless steel
Insulation	Jacketed with thermal insulation layer
Temperature Retention	Maintains gelatin processing temperature (55–65 °C typical)
Lid Type	Standard flat lid / Optional heated lid
Mobility	Mobile on casters (lockable)
Outlet Connection	Sanitary bottom outlet for gelatin feed to encapsulation machine

Available Configurations

Version	Description	Best For
Standard	Insulated tank with standard flat cover	General production use; shorter hold times
Heated Lid	Insulated tank with heated top cover - reduces gelatin skin formation and surface waste	Longer hold times; multi-shift production; minimizing gelatin waste
Single layer	Without jacket and heating system	It is suitable for needn't heating material
