High Speed Online Checkweigher

Product Overview

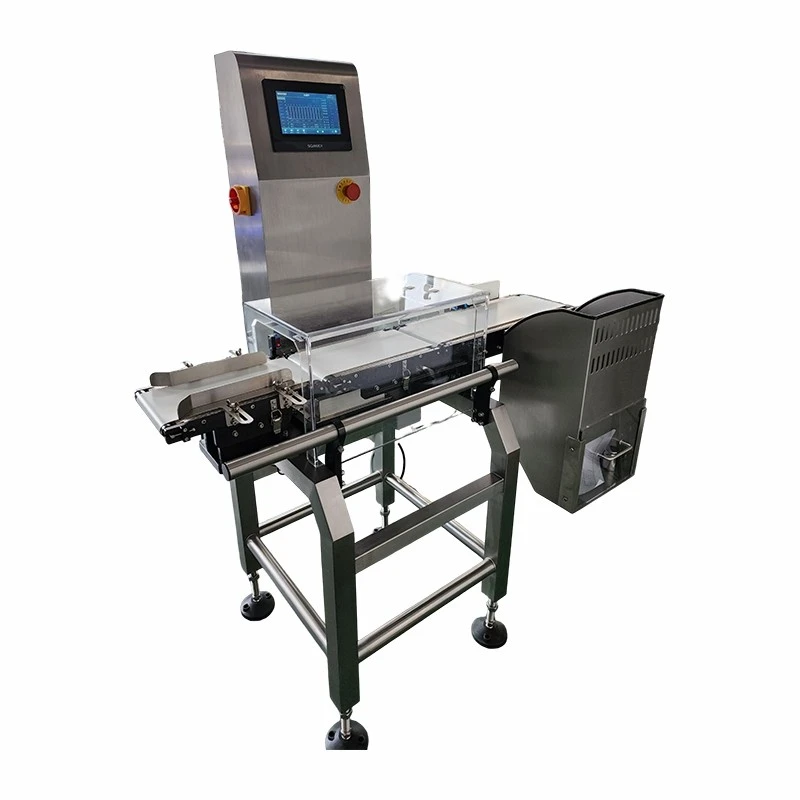

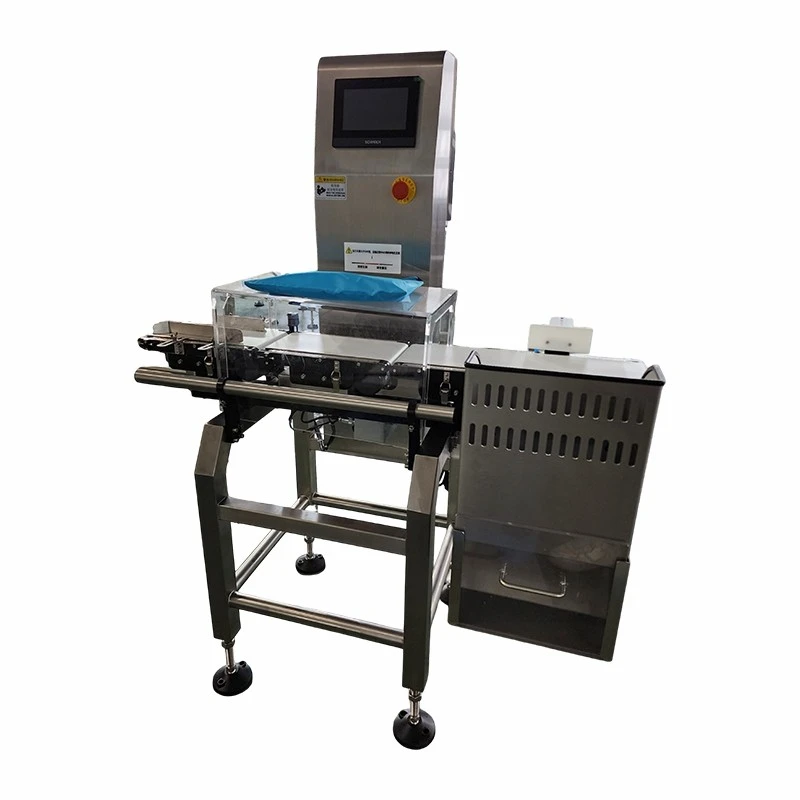

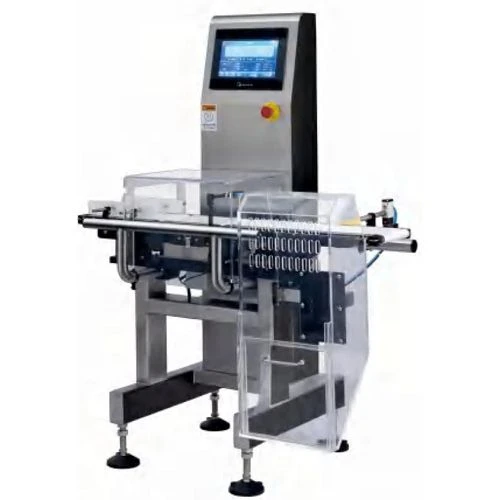

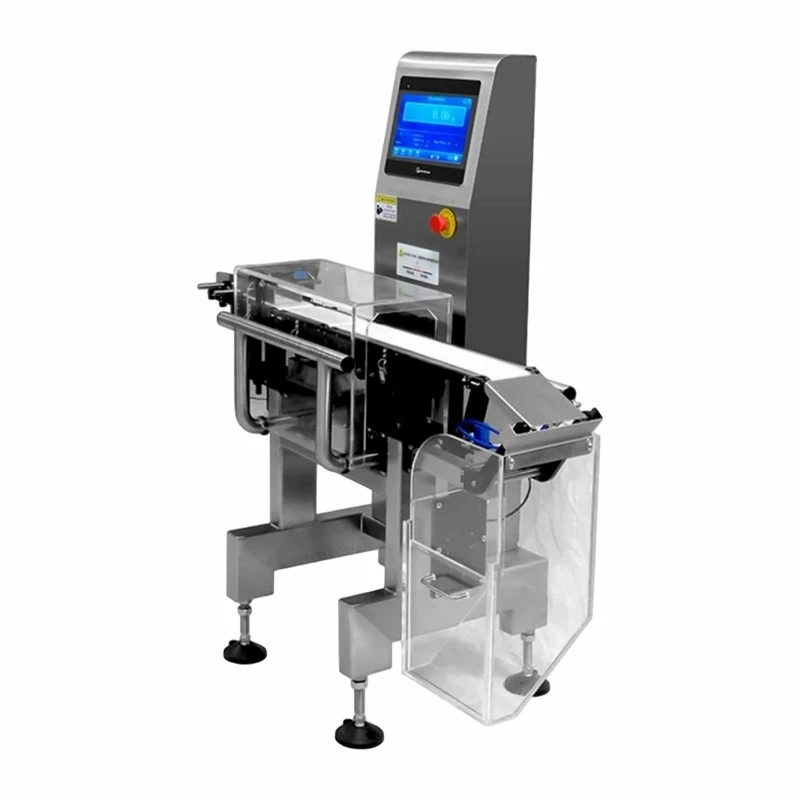

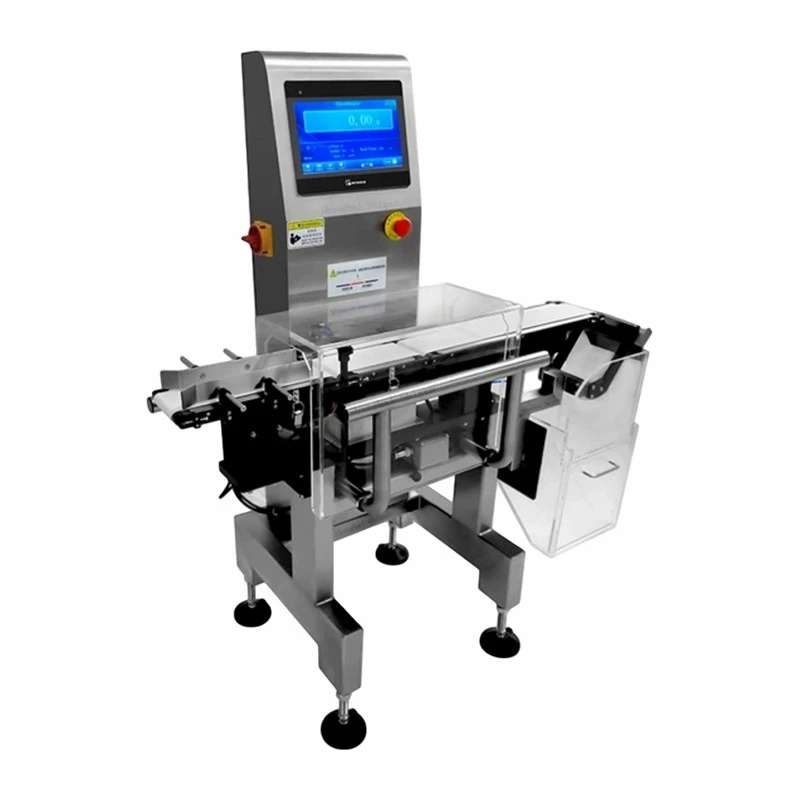

The VT-150H High Speed Online Checkweigher is a performance-optimized weight verification system engineered for high-throughput pharmaceutical packaging lines. Building on the proven platform of the standard VT-150, the H-variant delivers up to 250 packages per minute inspection speed - nearly 67% faster than the base model - while maintaining the same ±0.1g weighing accuracy over a 3–500g range. This high speed checkweigher is purpose-built for fast-paced bottling lines, blister packaging lines, and cartoning lines operating at elevated cadences, making it the preferred choice for large-scale generic pharmaceutical manufacturers and high-volume contract packaging organizations across the United States, EU member states, and Southeast Asia.

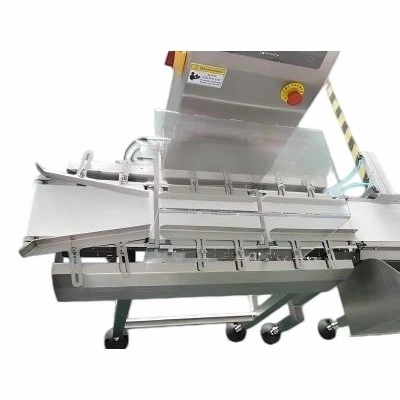

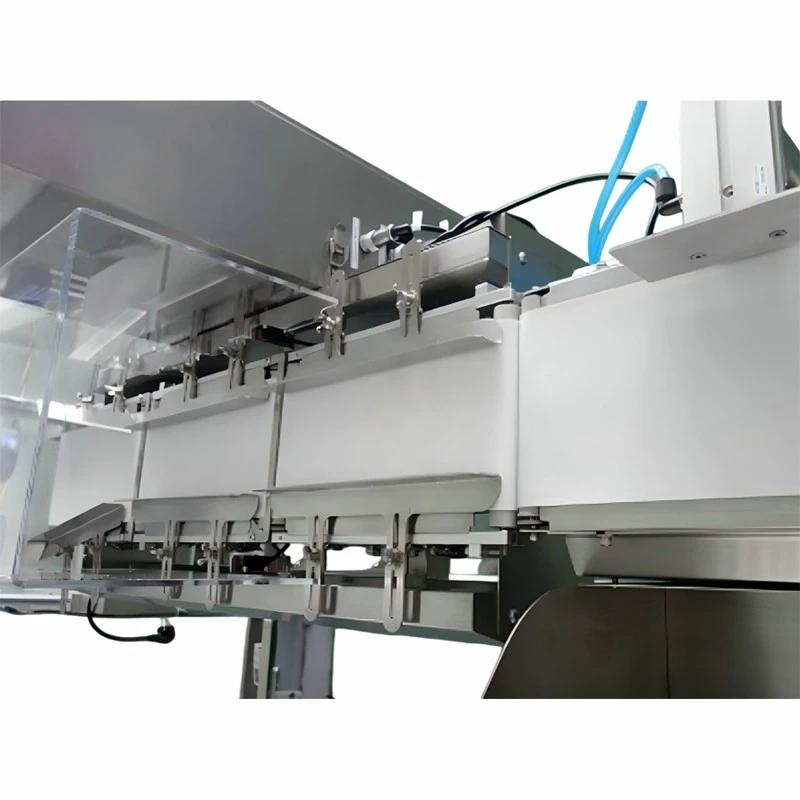

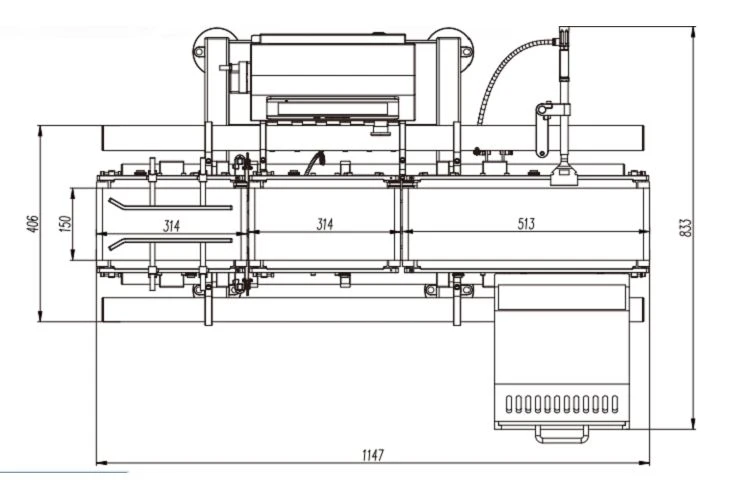

At the core of the VT-150H high speed Checkweigher is an enhanced electromagnetic force restoration load cell paired with high-speed digital signal processing, optimized to capture stable weight readings in milliseconds as packages traverse the weighing belt at speeds up to 90 meters per minute. Advanced dynamic filtering algorithms compensate for belt vibration and product momentum, ensuring that accuracy is not compromised even at maximum throughput. The 150mm-wide food-grade PU conveyor features precision belt tracking and a low-inertia drive system for smooth acceleration and deceleration during product transfer. Automatic weight compensation continuously calibrates for ambient temperature drift and belt wear, reducing the frequency of manual calibration interventions and maximizing overall equipment effectiveness (OEE) on 24/7 production schedules.

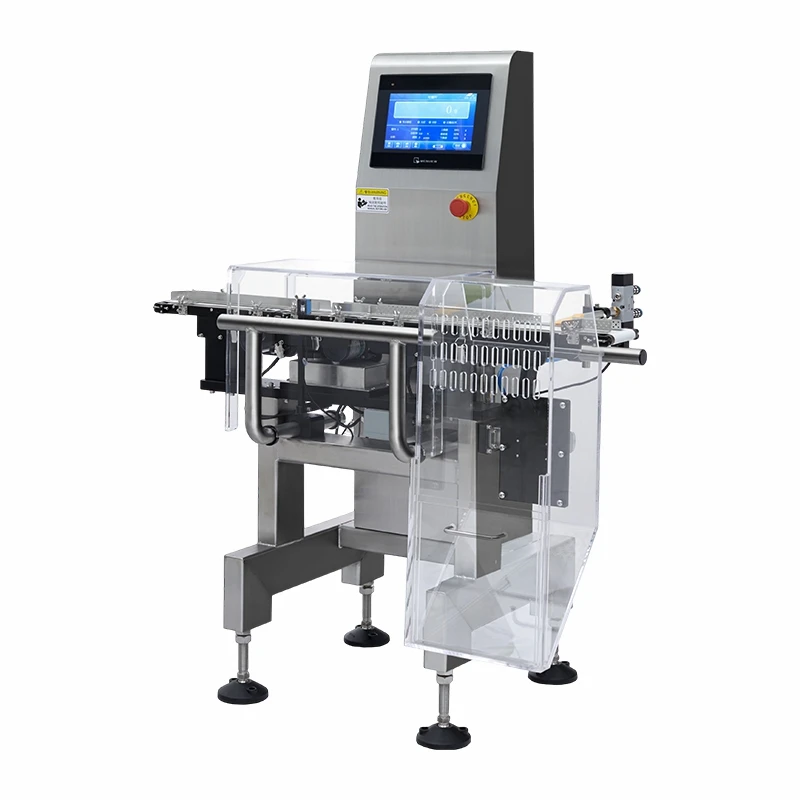

The VT-150H High Speed Checkweigher features a full-color touchscreen HMI with an intuitive bilingual (English / Chinese) interface, with additional language packs available upon request. The system stores up to 100 product recipes, enabling tool-free changeover between different package formats and weight targets - a critical advantage for facilities producing multiple SKUs on the same line. Real-time statistical process control (SPC) displays include run charts and histograms for immediate visibility into process capability and fill weight trends. Three-tier password-protected access levels (operator, supervisor, administrator) ensure that only qualified quality personnel can modify tolerance setpoints and calibration parameters. Production batch reports and raw weight data are exportable via USB memory stick or optional RS485 / Ethernet connection for integration with plant MES and quality management systems.

• High-speed tablet and capsule bottling lines (count-and-fill systems)
• Blister packaging lines with continuous motion cartoning
• High-volume OTC pharmaceutical and nutraceutical packaging
• Contract manufacturing and packaging facilities with rapid SKU changeover
• Fast-moving consumer health product end-of-line quality control
