Pharmaceutical Inline Checkweigher

Product Overview

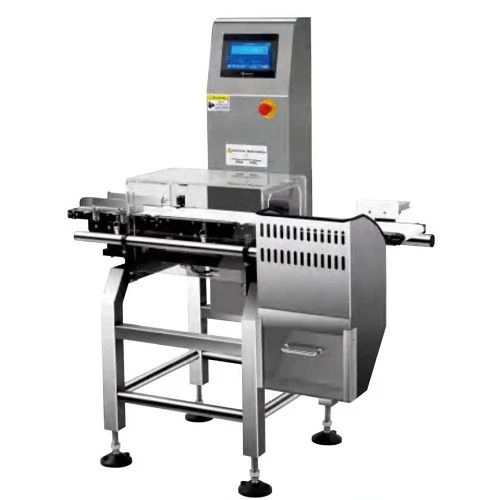

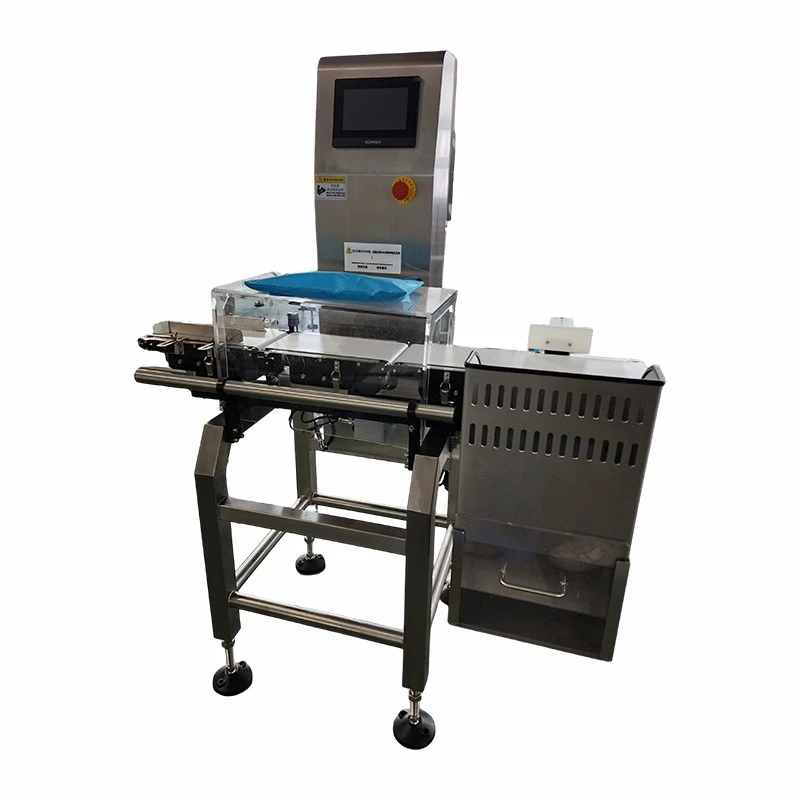

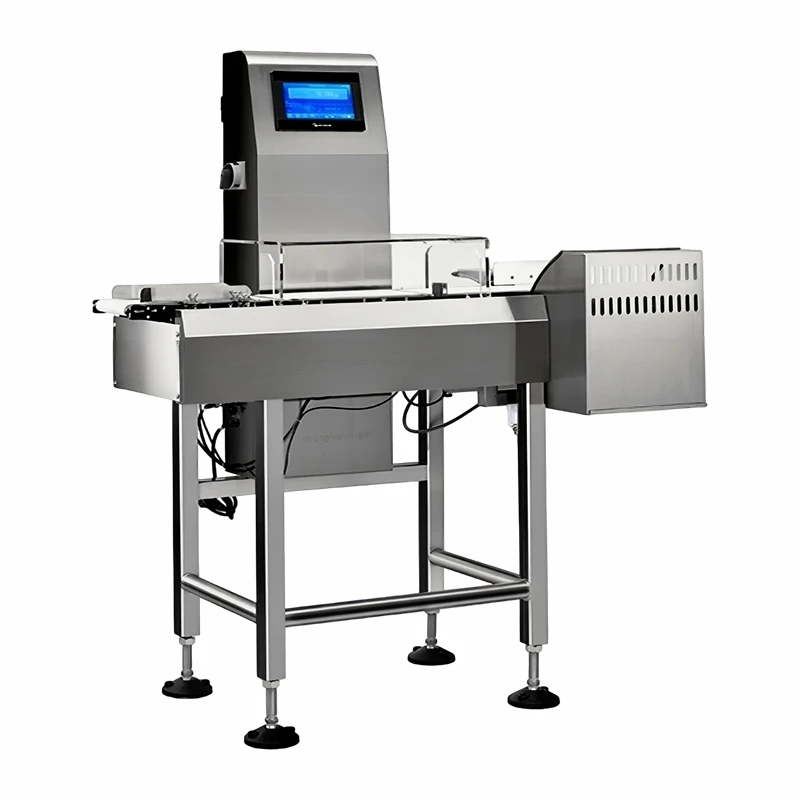

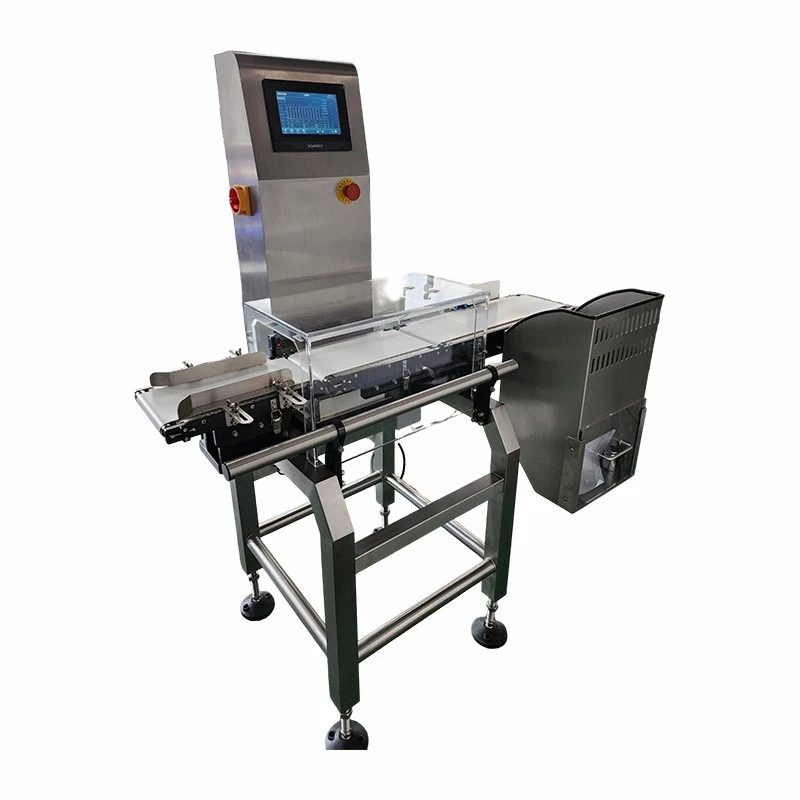

The VT-150 Pharmaceutical Inline Checkweigher is a versatile, mid-range conveyor-based weight verification system designed for finished pharmaceutical packages including bottles, blister cards, cartons, and pouches. Installed at the end of packaging lines, this dynamic checkweigher performs 100% in-motion weight checking to confirm correct fill count, detect missing leaflets or desiccants, and identify underweight or overweight finished units before they leave the production facility. With a weighing range of 3g to 500g and a throughput of up to 150 pieces per minute, the VT-150 Pharmaceutical Inline Checkweigher delivers reliable weight-based quality control for primary and secondary pharmaceutical packaging operations of all scales.

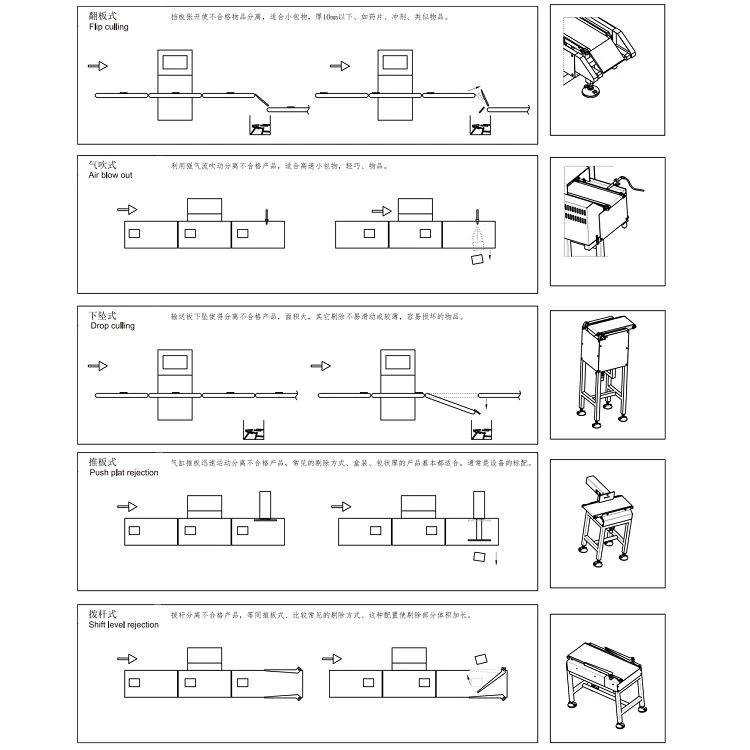

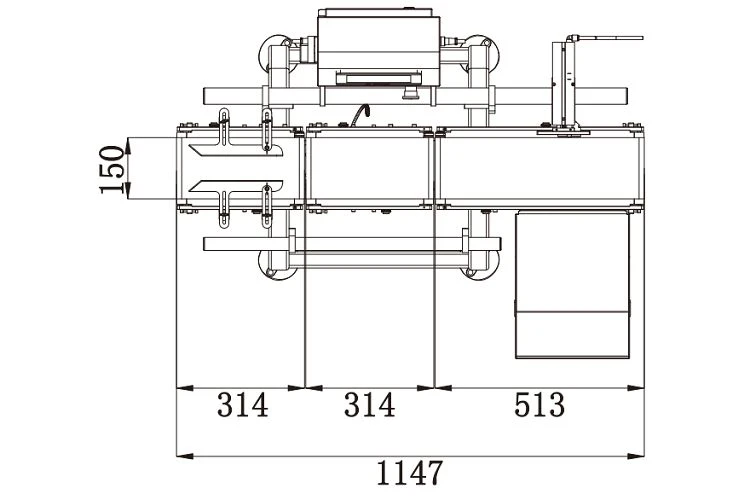

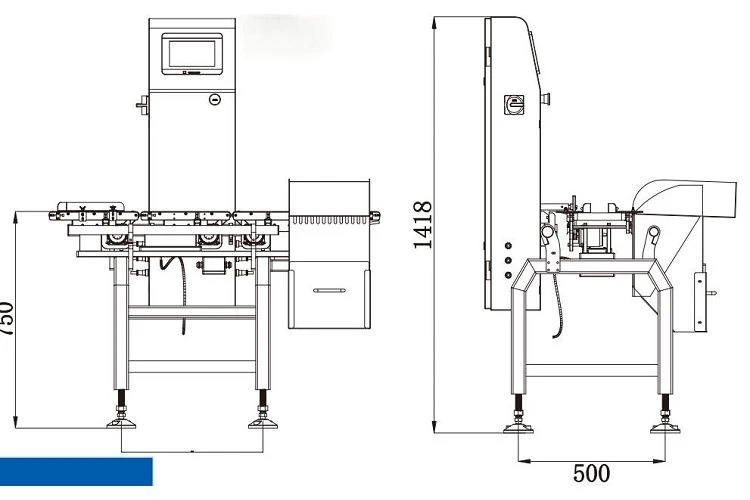

Built on a robust SUS304 stainless steel frame with adjustable leveling feet, the VT-150 pharmaceutical Inline Checkweigher is engineered for straightforward integration into existing pharmaceutical packaging lines. The 150mm-wide food-grade PU conveyor belt transports packages through the infeed, weighing, and rejection sections at speeds adjustable from 0 to 60 meters per minute. The system automatically rejects out-of-tolerance packages using a selectable rejection mechanism (air blast, push-arm, or drop-through configurations available) matched to the package type. The cantilevered frame design and open construction allow easy access for cleaning and maintenance - critical for GMP-regulated production environments. The checkweigher can be installed as a standalone unit or networked with upstream coding, vision, and metal detection equipment to form a complete end-of-line quality inspection station.

The VT-150 Pharmaceutical Inline Checkweigher features an intuitive color touchscreen HMI with bilingual (English / Chinese) operation, with additional language packs available for local markets across Europe and Southeast Asia. Advanced weight compensation algorithms automatically adjust for belt friction, temperature drift, and product positioning variation to maintain consistent weighing accuracy throughout production runs. The built-in statistical package generates real-time run charts (bar graphs and trend curves) for process capability analysis, and stores up to 100 product recipes for fast changeover between SKUs. Three-level password-protected user access ensures that only authorized quality and engineering personnel can modify tolerance limits and calibration parameters. Production data and batch reports are exportable via USB memory stick or optional LAN / RS485 connection for direct upload to plant quality management systems.

• Bottled solid oral dosage (tablets / capsules) net weight verification
• Blister pack and strip pack completeness check
• Cartoned pharmaceutical products (missing leaflet / unit detection)
• Topical cream and ointment tube fill weight confirmation
• Vial and ampoule fill weight inspection (with appropriate guide rails)
